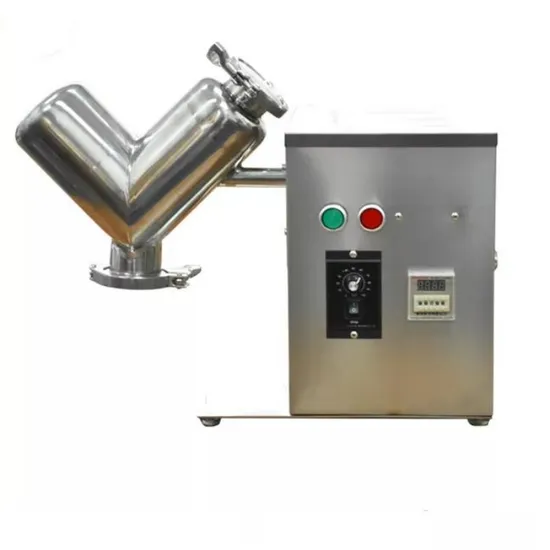

Stainless Steel V Type Dry Powder Mixer Vh-2 Small Lab Pharmaceutical Food Powder Blender

Product Description

Stainless Steel V Type Dry Powder Mixer Vh-2 Small Lab Pharmaceutical Food Powder Blender Product Name : Powder Mixer Machine
Model: VH-2
Barrel Capacity: 2L
Machine Dimension(L*W*H): 36*28*45cm
Voltage: 110V/220V
Power (kW): 0.25 kW
Warranty: 1 Year
Machine weight (Kg) 16KG
Packing weight with wooden box(Kg) 19KG
Simplified diameter (mm): Φ100
Feeding port diameter (mm): Φ57
Diameter of discharge port (mm): Φ57
Applicable Industries: Food & Beverage Factory, Home Use, Food Shop
After Warranty Service: Video technical support

Item	value
Mixer Type	Agitator
Barrel Volume (L)	2
Power (KW)	0.25kw
Max. Loading Volume (L)	1L
Range of Spindle Speed(r.p.m)	1r.p.m - 24r.p.m
Max. Loading Quantity (kg)	0.6kg
Weight (kg)	19kg
Material	SUS304
Condition	New
Application	Powder

VH-2 Mixer Machine Details
1. Compact structure, easy to operate and maintain.
2. Made of stainless steel, meets GMP standard.
3. Elegant design of V-like machine body to blend stuff with no dead corner.
4. Works very steady and quite.
5. Digital control the blending time.
Application: This machine is suitable for mixing dry powder or granular materials such as pharmaceuticals, chemical industry and food.
The power of motor is transmitted to reducer through belt, and reducer is transmitted to V-barrel through coupling.
The V-shaped barrel can be continuously operated, and the materials in the barrel can be fully mixed in the upper, lower, left and right parts of the barrel.
Medicine: capsule granules, Chinese herbal condiments, powdery or granular Chinese herbal medicine, Western medicine and other mixtures.
Chemical products: iron powder, copper powder, magnesium powder and other chemical powder.
Feed: It can be mixed with various feeds, such as fishery feed, poultry feed, wildlife feed, fowl feed and so on.
Food: such as condiments, additives, vitamins, and various sugar products.
1. VH Blenders are commonly used in pharmaceutical, nutriceutical, chemical,food and related industries to mix dried powder and granules.
2. VH Blenders are rugged in designed and construction, 304 S.S. (optional 316L) mirror polished of inner andouter shell to meet the GMP Standard.
3. We offer the most affordable VH-Blenders in the market from laboratory to large scale productionbatch.
4. We used heavy duty industrial Motors & Drives for all 3-Phase VH and intensifier bar.
VH-2 Machine Structure:
1. This machine is composed of V-type asymmetric mixing barrel, two-phase motor, reducer, time relay and other components, with high mixing uniformity. Because of the unequal length of the two cylinders and the time difference of material flow in the cylinder, the mixing efficiency and uniformity are very high.
2. Low noise, beautiful and concise appearance, convenient operation and maintenance, no residue, no cross-contamination. There is no dead angle between the inner part of the cylinder and the contact part of the material, the mixing process is mild, no segregation, complete discharge, no residue, and no cross-contamination.
3. The machine is made of 304 stainless steel for the contact part and shell with medicine. The cylinder body is made of stainless steel. It is corrosion-resistant and has long service life. It meets the GMP standard.
Technical Parameter of other models small powder mixer Machines :

Product Name	VH-2	VH-5	VH-8
Volume(L)	2L	5L	8L
Max. Loading Capacity(L)	1L	2L	4L
Max. Loading Quantity(g)	600g	2000g	5000g
Mixing speed (r/min)	1 - 24r/min	1 - 25r/min	1 - 35r/min
Working Voltage(V)	220V or 110V	220V/ 110V	220V or 110V
Motor power (Kw)	0.25Kw	0.55Kw	0.55Kw
Dimensions (cm)	41*34*40cm	61*55*70cm	61*55*70cm
Machine weight (Kg)	16KG	48KG	51KG
Packing weight (Kg)	19KG	55KG	60KG

FAQ ( Frequently Asked Questions ) Q: What's your MOQ ?
A: It is ok if you need 1 piece of this small mixer machine for a test .
Q: How can I pay ?

Q: Do you have 220V motor and 110V motor for Choice ?
A: We have 110V and 220V motor for choice, and meanwhile we have different plug for different countries, our clients can use it directly after receiving it .
Q: What's the shipping time
A: Different countries have different shipping time, you can tell me which city you are in, and we would tell you the accurate shipping time .
Q: What's the shipping service
A: We can help complete Customs-clearance, and also cover tariff since many friends don't want to contact Customs to do Customs-clearance in person .
