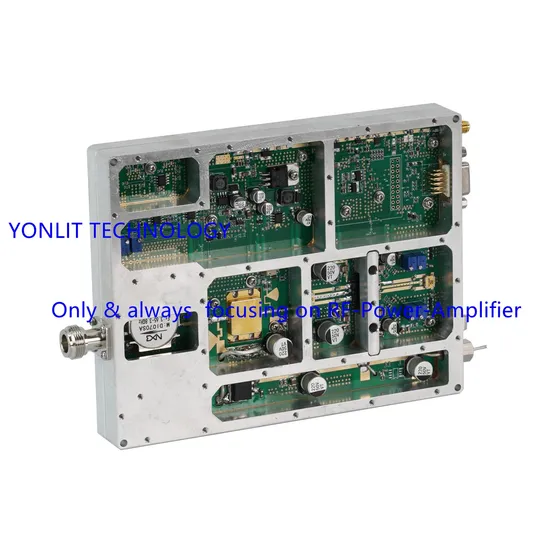

5.8g 5.2-5.8GHz 100W 50dBm Cw GaN Sspa for Jammer

5.8g 5.2-5.8GHz 100W 50dBm Cw GaN Sspa for Jammer

US$2,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
HPA-G50(5200-5800MHz)
Condition
New
Frequency
5.15-5.35GHz
Output Power
100W
Final IC
GaN
Working Mode
Cw
Transport Package
Paper Box
Specification
180*140*30mm
Trademark
YONLIT
Origin
Shenzhen
HS Code
8543709200
Production Capacity
100PCS/Month

Product Description

HPA GaN 5200-5800MHz 100WFrequency Range: 5.2-5.8GHz
or 5.3-5.9GHz
Small Signal Gain: >50dB ± 1.5dB
Pin : 5-10dBm
Pout: 51dBm± 0.5dB over -25 to 65ºC
RF IN/Out VSWR: <1.5
Working Voltage 28VDC
Working Current: <15A
Power Connector: Pull-core Capacitor
RF IN Port: SMA-K
RF OUT Port: NK
Dimension : 180x140x25mm ( Exclusive Connector)
Working Temperature: -25 to 65ºC
Protection: Alarm and Shutdown more than 75ºC, auto-restart less than 50ºC
Alarm and Shutdown over High-VSWR, auto-restart after 30s
Monitoring : Forward Power, Reversed Power, Temperature, Current
Control: 31dB attenuation, EN PA,
