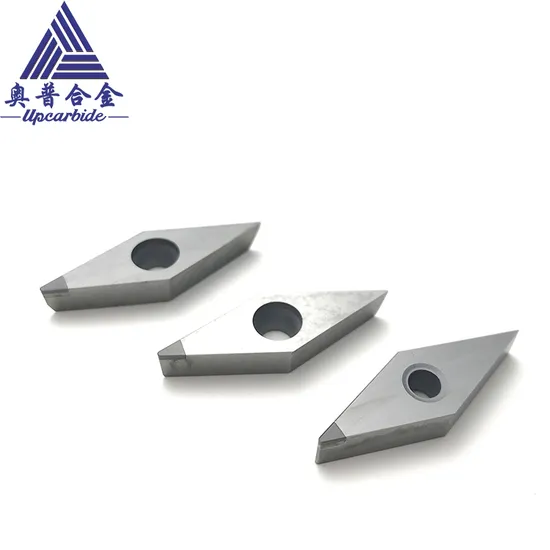

Vcgt110304 Vbgt110304 Diamond Cutting PCD CBN Insert for Hard Steel CNC Machine
Basic Info.
Model NO.
VCGT110304
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, RoHS, ISO 9001
Condition
New
Usage
Processing Steel
Item Number
Vcgt110304
Advantage
Good Wear Resistance
Transport Package
Inner Box+Carton
Specification
VCGT110304
Trademark
ZZUP
Origin
Zhuzhou, Hunan, China
HS Code
820900100
Production Capacity
10000000PCS/Month
Packaging & Delivery
Package Size
19.00cm * 11.00cm * 15.00cm
Package Gross Weight
2.000kg
Product Description
VCGT110304 VBGT110304 Diamond Cutting PCD CBN Insert for Hard Steel CNC MachineSpecifications
PCD-(Polycrystalline Diamond) is mainly suitable for processing of aluminum, copper, acrylic, brass, plastics, stone,Wood, non-ferrous metals, etc. PCBN-Cubic Boron Nitride Blade (CBN) is mainly suitable for processing of hardened steel, hard/ grey cast iron, HSS Roll. Sintered metal,high hardness materials.
Products Show
Grades choosing
| Grade | Applications |
| YBC151 | High wear resistance insert with coating,such as MT-TICN,thick AL2O3 and TIN;Suitable for steel finishing. |
| YBC251 | Blade security good toughness matrix in MT - TICN, thick AL2O3, excellent combination of TIN coating;Is suitable for semi-finishing steel. |
| YBC351 | In the high strength plastic substrate resistance and MT - TICN, thick AL2O3, TIN coating combination;Has good toughness and plasticity deformation, suitable for steel The rough machining. |
| YBD151 | High wear resistance matrix and MT - TI (CN), thick excellent combination, AL2O3, and TIN coating is suitable for finishing and semi-finishing of cast iron materials. |
| YBM151 | Special organization structure matrix combined with thin TICN, AL2O3, TIN coating, has a good impact resistance and resistance to plastic deformation ability, at the same time Good shock resistance, suitable for the finishing, semi-finishing and roughing of stainless steel. |
| YBM251 | TICN substrate from good toughness and strength, thin, AL2O3, and TIN coating is suitable for semi-finishing and roughing of stainless steel. |
| YBM253 | Stainless steel efficient processing CVD new brands, which are widely used in big cut deep into to efficient processing field.To adopt advanced technology of ultrafine grain nanostructured coating,Gradient alloy substrate with high toughness,excellent performance, in the big cutting depth, feed, high speed cutting process has excellent cutting performance. |
| YBC152 | Thick thick TICN and AL2O3 coating, the impact toughness increase at the same time, the wear resistance has increased significantly, is processed to semi-finishing steel high-speed cutting The ideal choice of the cutting.Cutting speed can be increased by more than 25%, under the same cutting speed and tool life can be improved by more than 30%. |
| YBC252 | Adopts thick TICN and AL2O3 coating thick, strong ability to resist plastic deformation and the blade intensity, is closed from finishing to rough machining of steel Choose brand.Under the high removal rate cutting parameters or harsh working conditions has stable performance, and can achieve more green dry cutting.cut Cutting speed can be increased by more than 25%, under the same cutting speed and tool life can be improved by more than 30%. |
Packing details
Shipping ways
Production process
