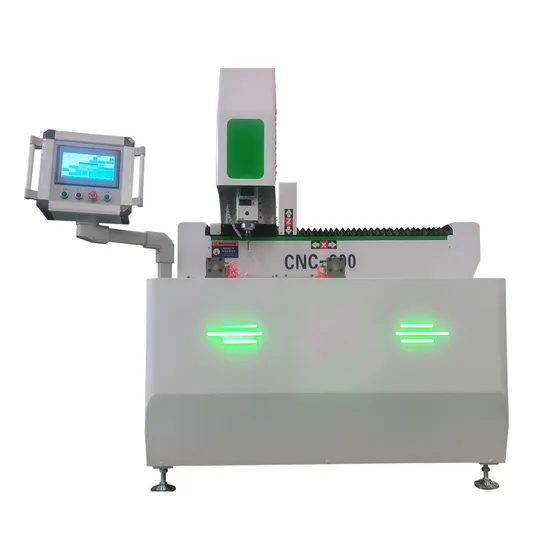

Aluminum Profile CNC Metal Drilling Machine Window and Door

Product Description

Aluminum Profile CNC Metal Drilling Machine Window and Door
Product Description
ST-800 1000 2000 2500 automatic CNC drilling machine making aluminum profile adopts ball bearing movement device, high precision guide liner, rack and pinion and servo motor, insure the stable movement with high precision position and operation. X-axis is driven by rack and pinion, Y and Z axis is driven by guide screw It adopts high speed spindle motor, stable rotation, low noise, strong milling ability
Worktable can be turned from -90°, 0°and +90°to realize one time clamping three surface milling.
It adopts PLC, Intelligent Integrated Numerical Control System, concision and vivid human and machine interface to have easy.
Operation: Pneumatic automatic support.
Features:

1. CNC specific system, easy operation and high stability
2. Thickness welded bed, sprayed with sheet metal, inlaid with light strips
3. Domestic first-line brand electric spindle, high precision, good safety and high reliability
4. The X-axis adopts high-precision helical gear and helical rack drive, and the Y-axis and Z-axis adopt high-precision ball screw drive to ensure smooth operation and high accuracy.
5. Chint electrical components, wire national standard.
6. Flip the beam with square rails, cooperate with the pneumatic locking module, easy to adjust.
7. Automatic conversion of processing codes through programming software, simple operation, high efficiency and low labor intensity
8. Turn the table 180 °. -90 ~ 0 ° ~ + 90 °, the profile can be processed on three sides in one clamping, and deep through holes can be processed (Special hole), deep hole processing is realized by turning the worktable, with high efficiency and guaranteed accuracy.
Technical Parameter

CNC Drilling Machine	Specifications
Square pipe cast welded lathe	Lathe bed adopts strong welded steel tube to avoid distortion.
Control system	Cnc control system
Spindle power	3.5kw
Motor&drivers	Stepper
X Y Z ALL square guide rail	Top Brand Square Linear Rail, high accuracy, heavy burthen.
Transmission system	Taiwan high precision ball screw
Lubrication system for rail.	Included
Spindle rpm	1000-24000
Working pressure	0.5-0.6MPa
Working area on X axis	800/1200/1500/2000/3300mm
Working area on Y axis	150/200/350/400mm
Working area on Z axis	150/200/350/400mm
Working area	800*140mm
Rolling angle	180°/360°
Voltage	380V 50/60HZ/220V

Detailed Photos
HQD/WHD Powerful Spindle

Spindle with high Speed 1000-24000rpm enables powerful cutting for wood,pvc,jade stone, aluminum,copper,and other soft metal process.
PLC controller

Nc Studio control system,can optional JD or DSP control system which is easy to operate,you can also choose the mach 3 USB system.
Square guide rail

High precision Hiwin 20 guide fast speed and high accuracy,makes machine more stable working.
4axis/5axis With Rotary Optional

This machine can process cutting,3D Carving milling,2D/3D/4D rotation axis is optional,
can engrave cylindrical round materials...

Application

Application:

Suitable for drilling, milling, round holes, special holes of aluminum alloy profiles, flat engraving and other processing.
