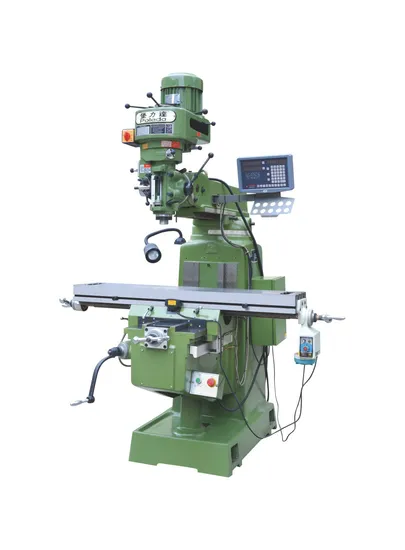

4hg Vertical Turret Milling Machine (R8/NT30) Vertical Universal Arm Type Turret Milling Machine
Basic Info.
Model NO.
4HG
Type
Tool Milling Machine
Object
Hardware
Structure
Rocker
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Wood Case
Specification
2000*1800*2500mm
Trademark
POLEDA
Origin
China
HS Code
8459590000
Production Capacity
50PCS/Month
Product Description
Product DescriptionMechanical characteristic
The casting is made of Meehanna cast iron, with good rigidity, no deformation and good stability.
Spindle is equipped with precision bearing combination, strong cutting force and excellent accuracy.
The end milling head adopts a unique inverted hanging design, with good accuracy, easy operation and easy braking. (Customers can select special function products)
The nuts on the three-axis screw are made of advanced phosphorus meter copper, good wear resistance and long service life.
XY shaft slide after high frequency ripening treatment, good tail wear resistance, increase service life.
Equipped with lubrication system to ensure smooth slide.
Product Parameters
| Product Name | ||
| Product Name | Milling machine | |
| Product model | 4H | |
| Product technical parameters | ||
| dimension | Table size | 1270*254MM |
journey | Left and right stroke(X) | 760MM |
| Anteroposterior stroke(Y) | 380MM | |
| Up and down stroke(Z) | 380MM | |
| Arm reach | 520MM | |
| Distance from spindle end face to table surface | 50-410MM | |
Principal axis coefficient | Spindle taper | R8/NT30 |
| Spindle speed | 80-5440RPM(16-speed) | |
| Spindle travel | 127MM | |
| Spindle horse power | 3HP | |
| Milling head | Milling head tilt Angle | 45° fore-and-aft |
Machine profile dimensions | T-slot (Number * Size * Spacing) | 3-15.88*75MM |
| Machine size (L * W * H)(MM) | 1750*1700*2200MM | |
| Approximate machine weight | 1280kgs | |
| The configuration is as follows | Accessories name and specification | quantity |
Standard parts for machine tools | 1,Hand oil pump | 1 |
| 2,Work light | 1 | |
| 3,Organ board + protective glue | 1 | |
| 4,Lever | 1 | |
| 5,Tools and toolboxes | 1 | |
| 6,Operating instruction | 1 | |
| Special parts for machine tools | 7,Two axis electronic ruler | 1 |
| 8, X-axis automatic feed | 1 | |
| 9, 6 "flat pliers | 1 | |
| 10.Clamp plate | 1 | |
| 11, R8/NT30 chuck | 1 | |
