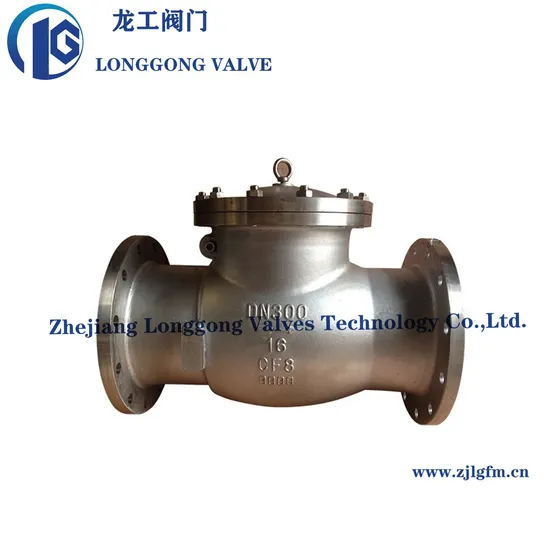

Wcb/CF8/CF8m Stainless Steel Spring Loaded Check Valve / Non Return Valve / Swing Check Valve Pn16-64

Product Description

FEATURES&BENEFITS 2"~48" (DN50~DN1200) W. P.: PN10-420 W. T.:-20ºC ~400ºC (-4ºF~752ºF) Design: GB/T 12236 Flange Dimension:JB/T 79 Face to Face:GB/T 12221 Inspection and test :JB/T 9092 Material: WCB, WC6, WC9, LCB,CF8, CF3, CF8M, CF3M, CN7M, Monel and Hast. etc. Dics and Stem: WCB,SS304, SS316,SS304L,SS316L,SS410,SS416.etc Offshore /Oil /Gas /Chemical /Petrochemical Pulp /Paper /Water /Wastewater /Marine

ITEM	PARTS	MATERIAL
		Trim1	Trim5	Trim8
1	BODY	ASTM A216-WCB
2	SEAT	ASTM A105+Cr13	ASTM A105+STL#6	ASTM A105+STL#6
3	DISC	ASTM A105+Cr13	ASTM A105+STL#6	ASTM A105+Cr13
4	HINGE	ASTM A216-WCB
5	DISC WASHER	ASTM A276-410
6	DISC NUT
7	DISC NUT PIN
8	HINGE PIN	ASTM A182-F6a
9	STUD	ASTM A193-B7
10	NUT	ASTM A194-2H
11	GASKET	SPW SS 304+GRAPHITE
12	BONNET	ASTM A216-WCB
13	EYEBOLT	CARBON STEEL
14	PLUG	ASTM A276-410
15	WASHER	ASTM A276-304
16	NAMEPLATE	SS 304

H44H-16C Dimension:

TYPE	PN (MPa)	DN (mm)	Dimension (mm)								Weight (Kg)
			L	D	D1	D2	b	Z-d	D3	H
H44H-16C H44W-16P H44W-16R	1.6	40	200	145	110	88	20	4-18	145	103	15.2
		50	230	160	125	102	20	4-18	185	160	21.3
		65	290	180	145	122	22	8-18	215	175	28.1
		80	310	195	160	133	22	8-18	235	185	37.6
		100	350	230	180	158	24	8-23	270	220	56.7
		125	400	270	210	184	28	8-25	340	248	91
		150	480	300	240	212	30	8-25	375	270	129
		200	550	360	295	268	34	12-25	435	350	210
		250	650	425	355	320	36	12-30	515	415	290
		300	750	485	410	370	40	16-30			320
		350	850	550	470	430	44	16-34			420

FAQ
1 Are you a factory or trading company?
We are a factory specialized in manufacturing valves and ftting over 10 years.We have our own stainless steel foundry in Fujian province.
And we have got ISO9001&TS certificate of Manufacturing and processing of valves and fttings.
2 Where are the main markets for your products?
We hope to make business with companies from all over the world. And for now, our valves and fttings have
Been exported to especially in North America, South America, South Asia, Europe and Middle East.
3 Do you have a minimum quantity of the products?
No, we will build business with you with even 1PC. We believe this cooperation will be a long- term relationship for our high quality, competitive price and good after-sale service.
4 Are samples available to be sent with free?
It depends on what product you need. There are hundreds of products we sell. You can contact us for particular answer.
5 Can you print our Logo on the valves?
Yes, we can totally produce products according to your special request, even manufacture it base on your drawing.
6 What is your lead time?
It's around 15 days normally. If we have the products in stock, it will be about one week.
7 what is your payment term?
T/T 30% down payment, balance to be paid before shipment.
8 How can I check your factory situation w hile it's difficult for me to come to China?
We have photos and videos on our website and facebook, It shows every step of the manufacturing.
9 How can you guarantee the quality of products?
Firstly, we have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every valve or ftting we sell is qualified and release the test mill certificate. If possible, We can also send you the sample for checking. Regarding the details, we can discuss if you want to know more about it.
