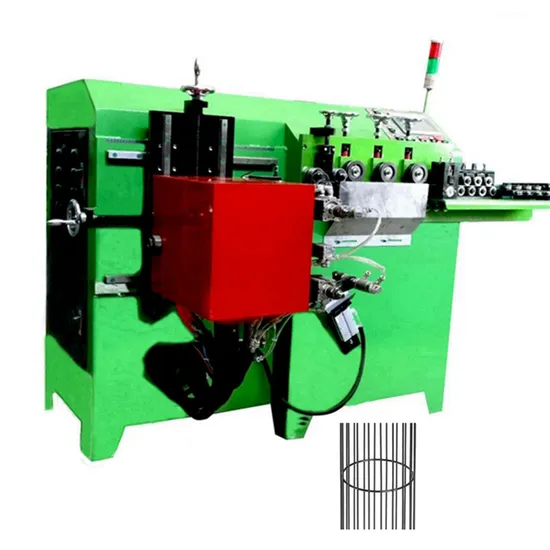

Medium Frequency Automatic Ring Making with Butt Welding Machine for Filter Bag

Product Description

Product Description
The automatic ring butt welding machine is mainly used to complete a series of manual butt welding processes after the traditional circle is folded, and the butt welding is performed directly after the circle is completed, in one step.
It can be fast, slow, reverse feeding, and avoid waste, which can greatly save labor, save production costs, and improve production efficiency.
1. The all-in-one circle butt welding machine has been tested for countless times, and it is already a mature product; without manual operation, it is a fully automatic equipment controlled by PLC to complete wire feeding, coiling, cutting, welding and other actions at one time. The speed is fast and the control system is easy to operate, which saves time and labor; it can simply and quickly set the overall dimensions of the workpiece.
2. The automatic circular butt welding machine adopts servo motor for feeding, gas-liquid booster cylinder for shearing, strong power, stable performance, high precision, compact structure and small volume; reasonable layout and low noise; exquisite workmanship and beautiful appearance.
3. The control system of this machine adopts the special controller for the circle machine, which has accurate counting, stable performance, strong high-quality resistance, long service life, fast production speed, accurate product size and high precision; it has the function of forward and reverse rotation; it is easy to operate and save electricity , high yield and low production cost.
4. In terms of welding, the automatic circular butt welding machine adopts resistance butt welding, the welding part is smooth and flat, and the burr is small, which is very beneficial for the production of handicrafts.
5. The wire feeding wheel, straightening wheel, forming wheel, etc. of the automatic circular butt welding machine are made of high-quality alloys, and have undergone vacuum heat treatment for high wear resistance and long service life.

Product Parameters

Model	XS-6W	XS-8W	XS-10W
Wire size	2.0~6.0mm	3.0~8.0mm	4.0~10.0mm
Circle diameter	80-800mm	80-800mm	80~800mm
Welding power	40KVA	63KVA	80KVA
Production rate	25-40pcs/min	20-30pcs/min	15-25pcs/min
Servo motro	2.0kw	2.3kw	3.8kw
Motor power	2.2kw	2.2kw	4.0kw
wire pay-off	200 kg	200 kg	200 kg
Weight	1000kg	1200kg	1400kg
Size(L*W*H)cm	210*150*165	210*150*165	220*160*165

Detailed Photos
Packaging & Shipping
Company Profile
FAQ
Q1: Are you a trading company or a manufacturer?
Answer: We are manufacturer,we have our own factories, which are located in Suzhou.
Q2: What are your payment terms?
Answer: T / T payment, the deposit is 40% of the payment, and 60% is paid
before delivery. Before paying the final payment,
we will provide you with photos of the product and warranty.
Q3: What is the price of your equipment?
Answer: The FOB price is only for reference, the actual price of the equipment should
also be determined according to your welding requirements, and there is a large
amount of discount.
Q4: How long is your delivery time?
Answer: Usually 30 days. If you need emergency services,
please notify us before submitting your order.
Q5: How about your after-sales service and warranty?
Answer: During the warranty period (one year), we will provide spare
parts to you free of charge. And provide technical consultants at any time.
