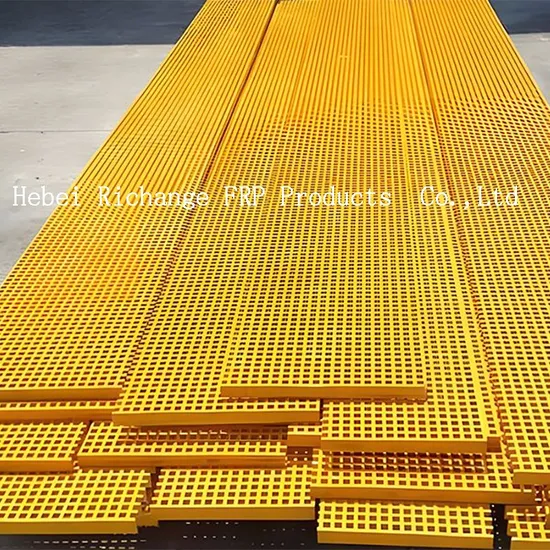

FRP Walkway GRP Grating Fiberglass Grating Size 38X38X38mm

Product Description

Product Introduction
Fiberglass grating, also known as fiberglass sheet, is a type of board made of glass fiber reinforced material and unsaturated polyester resin matrix, which has been specially processed. Fiberglass grating with a large amount of blank space can be used as a structural material for floors, trench covers, platforms, ship decks, stairs, etc. in corrosive environments
Walkways, etc. It has the characteristics of corrosion resistance, flame retardancy, non-magnetic insulation, bright colors, and a variety of styles and forms to choose from
Detail image
Specifications

Specifications(mm)	W*L(mm)	weight(kg)/sheet
38*38*25	1220*3600	54
38*38*30	1220*3660	70
38*38*38	1220*3660	88
38*38*38	1000*4007	81
50*50*50	1220*3660	98
19*19*38*38*30	1075*3626	72
38*38*65	1030*4040	141

Application Areas
Surface type:
Molded Grating Fasteners and Accessories:
Production process:
Why choose us
Material performance advantages:
Lightweight and high-strength: With a density of about 1.8, it is only 1/4 of steel and 2/3 of aluminum, but its strength is 10 times that of rigid polyvinyl chloride, surpassing aluminum and ordinary steel, which can greatly reduce the cost of foundation support and engineering materials
Corrosion resistance: It has superior acid, alkali, organic solvent, salt and other gas and liquid medium corrosion resistance, and has obvious advantages in the field of corrosion prevention. It can choose ortho benzene, meta benzene, and vinyl resins as matrix materials according to the application
Aging resistance: Theoretically, the service life is over 20 years, but its UV resistance is poor. Aging can be delayed by making a rich resin layer on the surface and adding UV absorbers
Flame retardant and fire-resistant: The flame propagation rate of ordinary flame-retardant grilles does not exceed 25, and that of advanced flame-retardant ethylene based grilles does not exceed 10. The oxygen index is not less than 28, and the fire resistance is good
Insulation non-magnetic: No breakdown at 10kV voltage, no electromagnetic properties, suitable for equipment sensitive to magnetism, and high safety in use
Installation and usage advantages:
Easy installation: Cutting and installation are simple, without the need for hot work or large lifting equipment, requiring only a small amount of labor and power tools, which can reduce installation costs
Anti slip and anti fatigue: The special structure gives it anti slip and anti fatigue characteristics. Proper design can make it have appropriate elasticity, reduce staff fatigue, and improve work efficiency
Beautiful and easy to clean: Colors can be freely selected and customized according to customer requirements to improve the production environment. The surface is smooth, not prone to dust accumulation, and easy to clean
Comprehensive benefit advantage:
Low maintenance cost: No need for paint, no maintenance, or extremely low maintenance cost, which can save a lot of manpower, material resources, and time costs
Strong designability: flexible and diverse in size, easy to cut, stable in size, customizable according to different usage scenarios and needs, with a wide range of product applicability
Packaging & Shipping
Company Profile
Hebei Richange FRP Products Co., Ltd. was established in August 2013 and is located at Weisan Road, High-tech Development Zone, Jizhou District, Hengshui City. It is a technology-based enterprise integrating product research and development, design, production, sales, installation and after-sales service. . The company has advanced equipment and a mature technical team. It has undertaken many key projects across the country and is a domestic company specializing in environmental protection equipment. Main products: bwfrp cable protection pipe with( braided, winding and pultruded processes), integrated pump station, FRP cable bracket, FRP molded series products, PVC - FRP, P P- FRP, P V D F -FRP, carbon steel, stainless steel and other composite FRP containers, It is a comprehensive enterprise integrating the production, sales and maintenance of towers, pipes and other series of products. The company currently has 10 (braided, wound and pultruded) pipe production lines. There are 12 tank spray lining production lines, 2 tank winding production lines, 1 integrated pump station production line, and 2 large molding machines. There are 3 small molding machines and 3 sheet production lines.
FAQ
1. Are you a manufacturer? Yes, we are a manufacturer, welcome to visit our factory!
2. What's FRP?Fiber Reinforced Polymer (FRP) is a composite material made of a polymer matrix reinforced with fibers. The fibres areusually glass, carbon, aramid, or basalt. Rarely, other fibres such as paper or wood or asbestos have been used. The polymer isusually an epoxy, vinylester or polyester thermosetting plastic, and formaldehyde resins are still in use. FRPs arecommonly used in the aerospace, automotive, marine, construction industries and ballistic armor.
3.How can you guarantee you product quality?
100% of our products will be tested before delivery. To control quality, we are using high quality material from highquality supplier.
