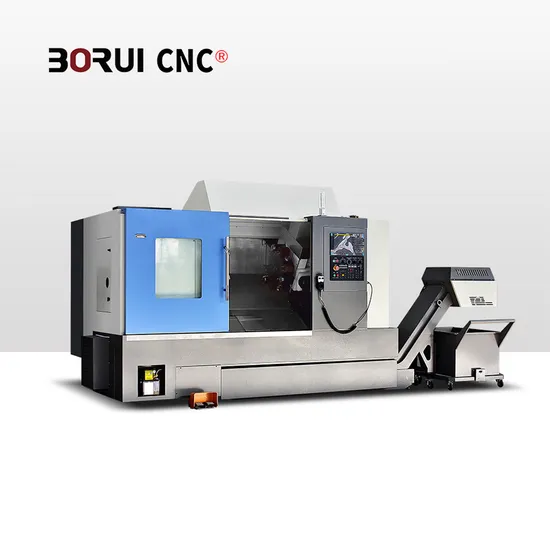

Y Axis Type Slant Bed Metal CNC Lathe Inclined Bed CNC Lathe Br570dy Borui Inclined Bed CNC Lathe Machine

Product Description

Y Axis Type Slant Bed Metal Cnc Lathe Inclined Bed Cnc Lathe BR570DY Borui Inclined Bed Cnc Lathe Machine

Product Description
The machine is the machine is suitable to process all kinds of small and middle-size shaft and plate work piece,and could also turn various threada,circle arc,circular cone,inside and outside surface of revolved body.this machine is widely used in sanitary,valve,electrical appliance,instrument,automobile,motorcycle,bearings and so on.
CNC Lathe Features
1. Highter accuracy Taiwan linear guideways
2. Highter speed spindle unit,optional homemade spindle
3. Highter rigidity cast iron
4. Integrated automatic lubrication
5. One-piece casting slat bed cnc lathe
Product Parameters

Machine Model	Model	BR-570DYx750
Major parameter	The maximum turning diameter on the bed	Φ650
	maximum machining diameter	Φ400 (SHDY16BR Cutter to edge 330)
	Maximum machining diameter on the tool holder	Φ360
	Maximum processing length	720
Spindle and chuck parameters	Spindle head form (optional chuck)	A2-6 ( 8″)
	Recommended spindle motor power	11-15KW
	Spindle speed	4200rpm
	Spindle hole diameter	66
	Bar diameter	52
Feed section parameters	X/Z axis screw specifications	3210/4010
	X/Z axis limit travel	270/830
	Recommended X/Z axis motor torque	11N.M/15N.M
	X/Z axis rail specifications	45/45
	X/Z axis connection method	Direct link
Turret	Turret type	Power Turret
	Recommended turret center height dimension	170
Tailstock	Maximum travel of tailstock	750
	Tailstock sleeve diameter	80
	Tailstock sleeve travel	80
	Tailstock sleeve tapered hole	MT5
Overall Dimension	Bed type and inclination	30°
	Machine size(L * W * H)	2077 ×1297 ×1427
Weight	Weight (approx. weight)	2800kg

Details Display


Packaging & Shipping
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
