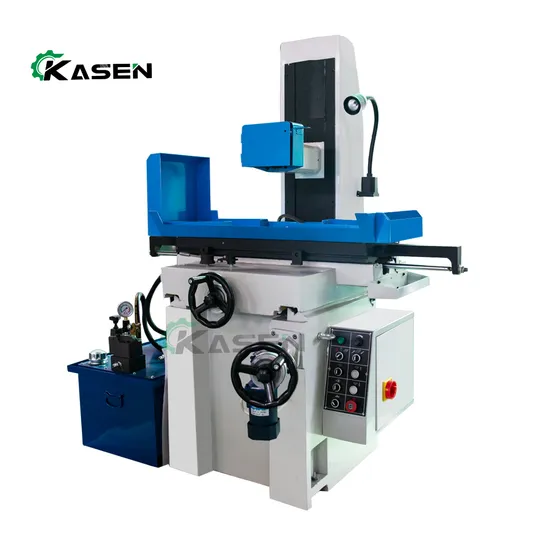

High Precision Universal CNC Grinding Machine Price My1230 Surface Grinding Machine

High Precision Universal CNC Grinding Machine Price My1230 Surface Grinding Machine

US$7,980.00
1-4 Pieces
US$5,980.00
5+ Pieces

Basic Info.

Model NO.
MY1230
Type
Surface Grinding Machine
Processing Object
Metal, Ceramics and So on
Abrasives
Grinding Wheel
Controlling Mode
Hydraulic
Automatic Grade
Automatic
Cylindrical Grinder Type
Hydraulic Grinder Machine
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Worktable Size (L * W)
800X400mm
Max. Travel of Table
900X480mm
50Hz
1450r/Min
60Hz
1680r/Min
Table Longitudinal (Left and Right)0 Spe
3-25m/Min
Continuous (Stepless)
240mm/Min
Intermittent (Stepless)
0-8mm/Times
Handwheel Per Turn
5.0mm
Handwheel Per Lattice
0.02mm
Spindle Motor
4kw*P
Cooling Motor
125W
Elevator Motor
180W
Hydraulic Motor
2.2*6 Kw*P
The Process Surface of The Base Level of
300:0.005mm
Surface Roughness
Ra0.4
Transport Package
Free Fumigation Wooden Box Packaging
Trademark
Kasen
Origin
China
HS Code
8460191000
Production Capacity
1000

Packaging & Delivery

Package Size
2550.00cm * 1650.00cm * 2200.00cm
Package Gross Weight
3200.000kg

Product Description

High quality surface grinding machine MY4080 Manual Surface Grinder
Product Description
Main performance characteristics: 1. The structure of the machine tool is reasonable, large machine tool bed weight, excellent stability, using the cross saddle structure, good rigidity, has the advantages of beautiful appearance and convenient operation. 2. Horizontal movement of working table (before and after) by servo motor drive, precision ball screw drive, to ensure accuracy,accurate positioning, in accordance with the procedures of automatic feeding, automatically and fast forward and rewind functions. 3. Working table vertical (or so) movement, the use of a V a flat guide, and the artificial precision shovel flowers, the use of hydraulic transmission, stable operation. 4. The grinding head up and down movement driven by a servo motor, which can achieve precise positioning accuracy, automatic feed and fast lifting function. 5. The Guangzhou CNC system GSK96 and two axis NC, according to the actual processing conditions free programming, with pulse wheel, X and Z axis feed can be free to switch freely. 6. Machine adopts full enclosed casing, can completely cover the whole of the working area, effectively prevent the splash of the cooling liquid and iron filings, and according to the requirements of clients connected ceiling spray dust removal device.
technical parameters:
Specifications
Units
MY4080
workbench
Worktable size (L * W)
mm
800×400
Max. travel of table
mm
900×480
Table T slot (slot number x slot width)
mm
3×14
Grinding head
The grinding wheel size (o. d * w * i. d.)
mm
Φ355×40×Φ127
Distance spindle center line to working table
mm
600
Grinding wheel speed
50HZ
r/min
1450
60HZ
r/min
1680
The amount of feed
Table longitudinal (left and right)0 speed
m/min
3-25
Transverse(front and rear) feed handwheel feed
Continuous (stepless)
mm/min
240
Intermittent (stepless)
mm/times
0-8
Handwheel per turn
mm
5.0
Handwheel per lattice
mm
0.02
The vertical (up and down) feed handwheel feed
Handwheel per turn
mm
0.8(1.0)
Handwheel per lattice
mm
0.01
Grinding head up and down is fast lifting speed (approximate value)
mm/min
1000
Motor power
Spindle motor
Kw*P
4*4
Cooling motor
W
125
Elevator motor
W
180
Hydraulic motor
KW*P
2.2*6
working accuracy
The process surface of the base level of the parallel degree
mm
300:0.005
Surface roughness
μm
Ra0.4
Machine weight
Net weight
kg
2800
Gross weight
kg
3200
External size (L * w * h)
mm
2550×1650×2200

Service support
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.
1.Warranty The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual. 2.Quick Response Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most. 3.Online Technical Support
On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions. 4.Overseas Commissioning and Installation This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian
