Electronic Yarn Wrap Reel Testing Machine with 6 Working Position

Product Description

Product Description

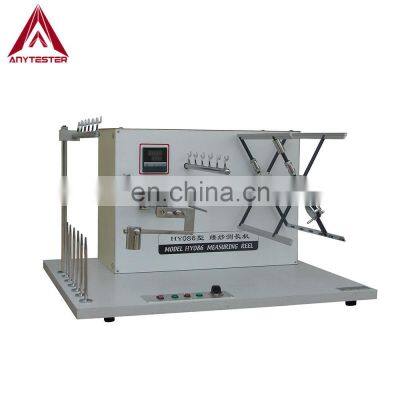

Product DescriptionHY086 Series Electronic Yarn Wrap Reel is used to produce skeins of yarn of a pre-determined length and number of turns for count and/or strength testing. Complete with yarn package stand and pre-tension device, fitted with pre-determined counter.SpecificationModelHY086CHY086EHY086FReel circumference1000mm1 yard (36 inch)1.5 yard (54inch)Working position6 or customizedRotational speed25-300RPM (numeric pre-settable)Interval of spindle65mmNumber of wrap2-9999 Rev (pre-settable)Programmable stop1-9 rev (pre-settable)Traveling reciprocating distance35mm+/-1mmReeling pre-tension0-100cN (pre-settable)Power supplyAC220V 50HzDimensions780×660×480mm (L×W×H)Weight50kgDetails & Features★ Use MCU to control unit, allow numeric programming parameter, Transistor drive counter★ Electric drive, easy to handle and more efficient★ Two optional startup mode (hard startup, soft startup), do not break yarn when startup★ Adopt well-known DC speed regulating motor with synchromesh belt makes precisely positioning★ Digital pre-tension system is optional, digital setting and digital displayOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
