4 Inch 8 Inch 12 Inch Mini Vacuum Spin Coater with Rotating Speed 10000rpm for Photoresist Spin Coating

Product Description

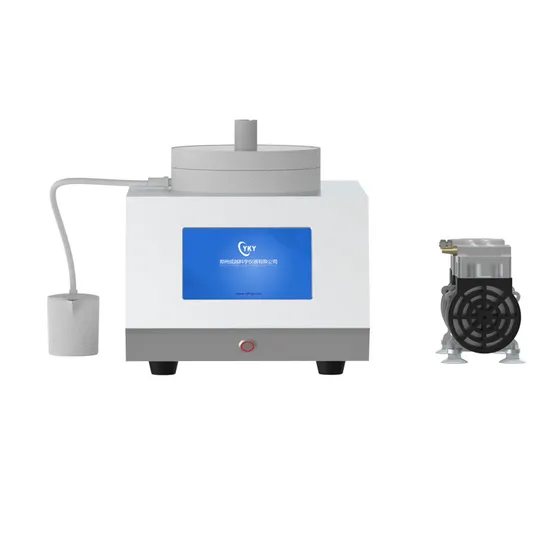

Lab 4 Inch 8 Inch 12 Inch Spin Coater with Vacuum Chucks

Product Description

Brief Introduction of heating type spin coater This spin coater adopts all-aluminum alloy chamber, which is beautiful and sturdy in appearance. The device adopts advanced precision motor, the maximum speed can reach 10,000rpm, which effectively guarantees the uniformity of film formation. This spin coater adopts advanced precision motor, the maximum speed can reach 10,000rpm, which effectively guarantees the uniformity of film formation. In addition to the basic spin coating function, this product is also equipped with heating elements, which can be heated up to 200ºC, temperature controlled by an intelligent temperature control meter, accurate temperature measurement, and completely controlled temperature rise process. In addition, the instrument adopts touch screen control and can preset the coating curve, which greatly simplifies the use process and reduces the learning cost. It is very suitable for laboratory purchase.
Heating type spin coater application: The spin coater can coat liquid or colloidal materials on silicon wafers, crystals, quartz, ceramics and other substrates to form thin films. It is mainly used in photoresist spin coating, biological medium preparation, sol-gel method for polymer film production, etc.
Product Parameters
1. Chamber size: 4-inch, 8-inch, 12-inch, other size need to be customzied
2. Chamber material: Stainless Steel, PP, Acrylic, Aluminum Alloy, PTFE
3. Optional functions: Heating, Auto injection system, Ultrasonic, Purifying, UV-light, etc
4. Vacuum chuck: Customzied vacuum chuck according your sample shape is available


Specifications of spin coater

Input power supply	AC220V, 50Hz
Chamber material	Stainless steel(transparent acrylic)
Substrate size	Diameter≤12 inches (~300mm)
Spin speed	0-5000rpm
Acceleration	100-5000rpm/s
Speed resolution	1rpm
Single step time	3000s
Operation method	7 inches HD LCD touch screen
Dispensing method	Manual dispensing
Coating curve	Each curve has 5 segments, can store 5 curves in total
Vacuum chuck	Yes, includes
Vacuum pump	Oil-less pump
Pumping speed	50L/min
Total weight	~40kg

Detailed Photos
We have spin coater 4-inch(<100mm), 8-inch(<200mm), 12-inch(<300mm). Customized is available!
