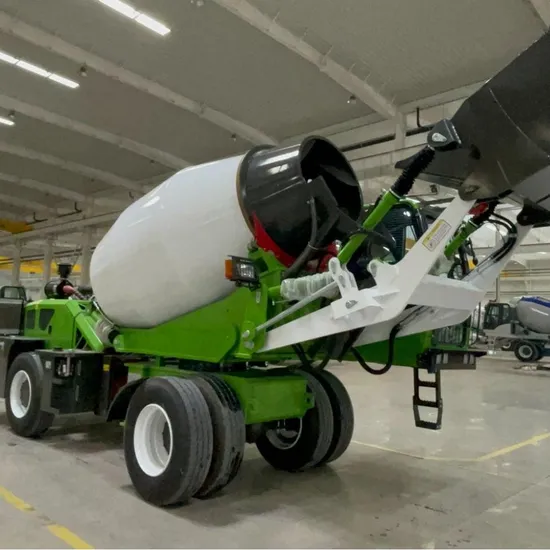

Concrete Equipment 4 M3 Self Loading Concrete Mixer Truck with Self Propelled

Product Description

Product Description

Model	Overall Dimensions (L*W*H)	Wheel base(mm)	Curb Weight(kg)	Engine Rated Power	Mixing Drum Geometrical Capacity	Drum Rotation Speed	Concrete Yield
0.5m³	4200*1600*2350	1500	1860	16KW	700L	18-21rpm	0.5m³/Batch
0.8m³	3389*2876*2295		3620		1450L		0.8m³/Batch
1.2m³	7300*1800*3450	2560	4920	58KW	1700L	13rpm	1.2m³/Batch
2m³(270°)	6950*2720*3850	2520	6300	75KW	3500L	18-21rpm	2.0m³/Batch
2.6m³(270°)	7860*2750*4100	2800	7000	75KW	3000L	13rpm	2.0m³/Batch
2.6m³(270°)	7100*2750*4100	2650	7800	75KW	3580L	13-20rpm	2.6m³/Batch
3.5m³A(270°)	7830*2680*4170	2900	7800	85KW	4740L	18-21rpm	3.5m³/Batch
3.5m³B(270°)	7730*2700*4180	2605	7900	85KW	4740L	18-21rpm	3.5m³/Batch
3.5m³C(270°)	7600*2800*4180	2640	8300	85KW	4740L	18-21rpm	3.5m³/Batch
3.5m³D(180°)	7590*2600*4270	2687	8050	85KW	4740L	18-2lrpm	3.5m³/Batch
4m³(270°) Aiticulation Synchronization	8450*3000*4500	3300	9700	91KW	6000L	20rpm	4.0m³/Batch
4m³(290°) Overall fiame	7640*2870*4750	2480	9000	91KW	6000L	18-21rpm	4.0m³/Batch
5.5m³(270°)	8450*3100*4580	3350	11200	92-132KW	7800L	20rpm	5.5m³/Batch
6.5m³(290°) Overall fiame	8450*3050*4830	2850	12520	92-132KW	9000L	16.5rpm	6.5m³/Batch

More Products
Company Profile
Shandong Shanqi Construction Machinery (Group) Co.,Ltd. was born out of Laizhou Jufeng Co., Ltd., which was founded in 1992 and has formed an industrial structure of "One Body Two Wings". It is a leading manufacturer of professional construction machinery equipment with a history of nearly 30 years, and is also a national heavy equipment manufacturing enterprise supported by the Chinese government. Our company is a group enterprise covering an area of more than 200,000 square meters, with more than 600 employees and 5 production plants. The main products we manufacture include self-loading concrete mixer trucks with output capacity from 0.6 cubic meters to 6.5 cubic meters, wheel loaders with payloads from 1 ton to 5 tons, backhoe loaders, rough terrain forklifts, crawler excavators, concrete Mixing pump etc.
The company has passed ISO9001, ISO45001, ISO14001 and other certifications, most of the products have relevant patent certificates, and related products have also passed CE certification. We continuously improve and update our products according to customer feedback and market demand. At every stage of the manufacturing process, each component passes rigorous testing before the assembled machine passes final preshipment inspection. So far, we have more than 200 distributor agents, 150 service provider agents and 10 spare parts warehouse centers in China, and have established a relatively complete after-sales service system. Our products have been exported to more than 30 countries and regions such as Europe, America, Southeast Asia, Central Asia, Middle East, Africa and Oceania. High-quality products, sufficient supply of spare parts, fast and efficient after-sales service and reasonable prices have enabled us to win the trust and good reputation of customers in domestic and foreign markets, and forged the "ZKJF" brand. In accordance with the development strategy of "taking the road of famous brand and building a century-old ZKJF", the company strives to move towards the grand goal of becoming a first-class enterprise in mainland China and a world-renowned construction machinery manufacturer.
Packaging & Shipping
PACKING AND SHIPPING USUALLY BY SEA Container: The cheapest and fastest to place the machinery in container, which needs to be disassembled. Flat frame: usually used to delivery machinery, with a maximum carrying capacity of 35 tons. Bulk Carrier: More suitable for large construction equipment without dismantling. Ro-Ro : The boat is driven directly onto the ship, no disassembly is required.
FAQ
Q: Are you the original manufacturer?
Answer: Yes, ZKJF was established in 1992 and is a national heavy equipment manufacturing enterprise mainly supported by the Chinese government.
Q: How is the quality of your products?
Answer: Our company has passed ISO9001, ISO45001, ISO14001 and other certifications. Most of our products have patent certificates, and related products have also passed CE certification. All the machines are carefully and strictly inspected and maintained by our skilled workers according to Chinese national standards as well as international standards, before shipping we will check the equipment again until it runs well before delivery. So as to ensure that every machine we deliver to customers has good performance and high quality.
Q: Will the price be higher than that of low-end products in the industry?
Answer: We are the leading manufacturing factory in China, and many big brand owners also carry out OEM production in our company. The production scale has reached a certain level. Although our products are of higher quality, the price is still very favorable.
Q: Do you provide after-sales service?
Answer: Yes. We provide a 12-month warranty, and our company is responsible for product quality problems caused by quality during this period. That is, if quality problems occur within 12 months after purchase, our company will provide free spare parts and promise to provide technical services. Our company has a professional after-sales service team, after-sales engineers provide installation and commissioning training, and solve all your worries systematically, thoroughly and quickly.
Q: How about your product spare parts service?
A: We are committed to providing our customers with high quality product spare parts service, precise fit and fast delivery and service. If spare parts are damaged due to product quality problems during the warranty period, we provide free spare parts.
Q: What about problems in daily use?
Our customer maintenance department and after-sales service engineers provide online consultation at any time.
