UNIVERSAL VERTICAL TOOL MILLING MACHINE ZTX8132

Product Description

Main features:
Ball screws and servo motors adopted on X Y Z 3-axis for easy and precise feeds Infinitely variable vertical cutting head with a swivel ±90°and the spindle controlled by variable frequency motor. Electronic handwheel adopted on X Y Z 3-axis ,easy operating Automatic oil lubrication, cooling system, Chip collector tray, CE Schneider Electric are standard.

specification		unit	ZTX32	ZTX40	ZTX45
Work space dimensions		Mm	750*320	800*400	850*450
Vertical table dimensions		Mm	890*225	1020*225	1190*250
T-slots,work table		Mm	(5)14*63	(6)14*63	(7)14*63
T-slots,vertical table		Mm	(3)14*63	(3)14*63	(3)14*63
Table load capacity		Kg	160	200	300
travels	Longitudinal(X)	Mm	405	500	600
	Transverse(Y)	Mm	305	400	450
	Vertical(Z)	Mm	400	400	450
Speed range		Rpm	(2)40-2000	(2)40-2000	(2)40-2000
Spindle mount			NT40	NT40	NT40
Feeds X Y Z axis		Mm/min	10-1000	10-1000	10-1000
Rapid feed		Mm/min	1200	1200	1200
Quill stroke		Mm	60	60	60
Main motor rating		KW	3.7	3.7	5.5
Feed motor rating		N.M	X:7.7 Y:7.7 Z:10	X:7.7 Y:7.7 Z:10	X:10 Y:10 Z:15
Dimensions (L*W*H)		Mm	1500*1700*1800	1500*1700*1800	1600*1800*2000
weight		Kg	1450	1550	1750

Standard Equipment	Specification
Automatic oil lubrication
CE Schneider Electric
Electronic handwheel
Milling Arbors	Φ-16,22,27,32mm
Reducing sleeves	MT1,2,3
Collet chuck with collets	2,3,4,5,6,8,10,12mm
Draw bar
Coolant system
Chip collector tray
Oscillation elements
Outer arbor support for horizontal milling
Work lamp
Operating instructions

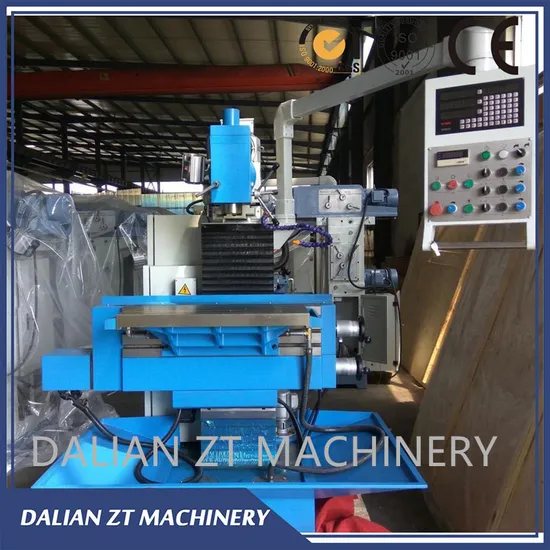

Machine Details:
FAQ
1. How can I choose the most suitable machines?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
Packing & Local Transportation & Fixing
Normally we will pack the machines with fumigated wooden cases or poly wooden case and steel pallets. When the machines are loaded into the container, fixing job will be done to ensure the sea shipment safety.
