Flexible Inner Shaft/Flexible Drive Shaft/Flexible Shafts for Drain Cleaning/Transmission Shaft
| US$1.00 | 100 Meters (MOQ) |
Basic Info.
Model NO.
MSF2,3.18,4,5,6,7,8,9,10,12,13,16,18,20
Corrosion Resistance
Medium Corrosion Resistance
Flexibility
Flexible
Journal Diameter Dimensional Accuracy
IT6-IT9
Journal Surface Roughness
0.63-0.16μm
Material
Steel
Strength
High Strength
Surface Finish
Coated
Tolerance
Precision Tolerance
Smooth
Flexible
Highly-Elastic
Wear Resistant
Color
Black or Golden
Diameter
0.9-60mm
Load
Drive Shaft
Stiffness & Flexibility
Flexible Shaft
Axis Shape
Soft Wire Shaft
Shaft Shape
Real Axis
Appearance Shape
Round
Transport Package
Cartons, Pallets, Woven Bags. or as Your Request
Specification
ISO9001: 2008, SGS
Trademark
MAISO
Origin
Yanggu, Shandong
HS Code
7312100000
Production Capacity
400000 Meter/Meters Per Month
Packaging & Delivery
Package Size
50.00cm * 30.00cm * 30.00cm
Package Gross Weight
10.000kg
Product Description

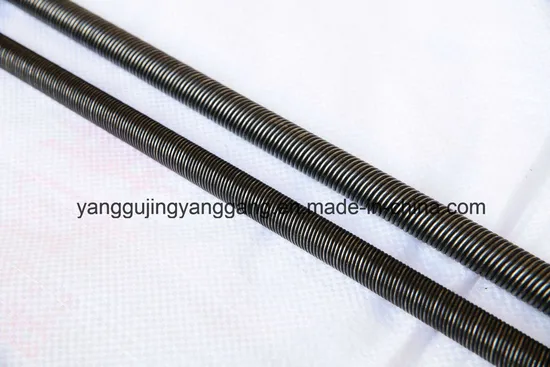

Flexible shaft is a shaft with little rigidity and free bending flexibility. Used to connect a different axis and two axes that are not in the same direction or have relative motion to transmit rotational motion and torque. It can transfer rotational motion and torque flexibly to any position.
Flexible shaft usually consists of a core wire in the middle and several layers of wire alternately wound outside. Each layer has 4~12 steel wires, and the adjacent 2 layers of steel wires are wound in opposite directions. Flexible shaft products distinguish left and right rotation direction, suitable for different rotation directions of the motor and ensure the life of the flexible shaft.
material : 70#~75# high-carbon steel wire
Direction of Twist: Levorotation and dextrorotation
Applicable Scope: Vibrating machine, automobile, motorbike, counter, revolution counter, electric tools, gardening machinery mower, and various mechanical flexible rotations.
Function: Smooth, flexible, highly-elastic, and wear resistant
| Diameter (mm) | Tolerance (mm) | Number of Layers | Loading Moment (N @ m) (Sample 500mm Long) | Weight (kg/ 100m) | |
| 2.0 | +0.02 -0.02 | 3/5 | 0.8 | 1.8 | |
| 2.5 | 3/5 | 1.0 | 2.8 | ||
| 3.2 | 3/5 | 1.3 | 4.6 | ||
| 3.8 | 3/5 | 1.5 | 6.5 | ||
| 5.0 | +0.00 -0.05 | 3/4/5 | 1.8 | 11.3 | |
| 6.0 | 3/4/5 | 2.4 | 16.2 | ||
| 6.5 | 4/5/7 | 2.9 | 18.7 | ||
| 8.0 | | 4/5/6/7 | 7.5 | 28.8 | |
| 10 | 4/5/6/7 | 22.5 | 45.5 | ||
| 12 | 4/5/6/7 | 39.0 | 66.5 | ||
| 13 | 4/5/6/7 | 50.5 | 77.5 | ||
| 16 | 4/5/6/7 | 115.0 | 114 | ||
| 18 | 4/5/6/7 | 160 | 145 | ||
| The flexible shafts not listed in the chart can be customized | |||||
