11.5mm Diamond Wire Saw for Granite Quarrying

Product Description

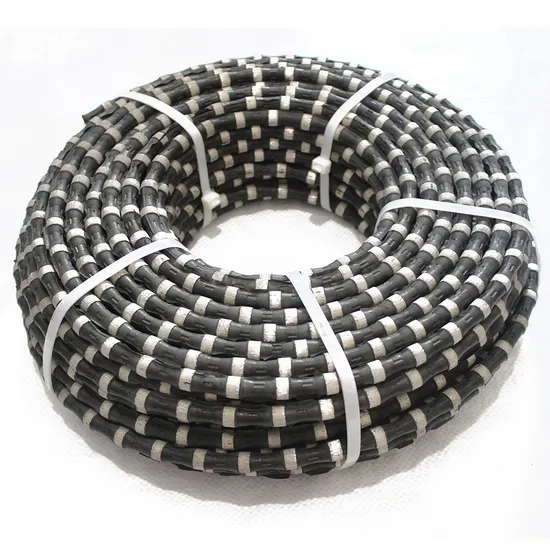

China Manufacture Diamond Wire Rope for Quarrying Granite Product Description Description of Diamond Wire Saw
Type: Wire saw machine tool parts
Raw material: Diamond
Application: Quarrying, block squaring, profiling, Concrete
Reinforcement: Rubber,Plastic, Spring
Other name: diamond wire rope, diamond rope saw
Our Advantages Character & advantage of Diamond Wire Saw
High effection, low cost, low waste
Cutting smooth and process accurate
Safe and environmental protection
Can cut a big and regular stock
Factory with more than 15 years experience in diamond tool industry
A large number of exports to Eastern Europe, North America, South America, the Middle East, Australia and other overseas markets, product quality has been recognized by overseas customers.
More than 100 sets hot-press, colde-press, wire saw machine and over 300 employees keet the high output and fast delivery time.
Product Parameters What The Data of your diamond wire saw In Cutting Granite

Diameter	Beads/m	Reinforcement	Hardness of stone	Speed		Life(m2/m)
				(m/s)	(m2/h)
φ8 φ9	37/40pcs	Plastic Plastic+Spring	Soft	24-28	10-20	15-20
			Medium hard	22-26	8-15	10-15
			Hard	20-24	7-10	8-12
φ10.5 φ11 φ11.5	40pcs	Rubber Rubber+Spring	Soft	25-30	15-25	20-30
			Medium hard	22-25	10-15	15-25
			Hard	18-22	8-12	10-15

What The Data of your diamond wire saw In Cutting Marble

Diameter	Beads/m	Reinforcement	Hardness of stone	Speed		Life(m2/m)
				(m/s)	(m2/h)
φ8 φ9	37/40pcs	Plastic Plastic+Spring	Soft	30-35	20-30	30-40
			Medium hard	28-32	15-25	25-35
			Hard	26-30	10-20	20-30
φ10.5 φ11 φ11.5	40pcs	Rubber Rubber+Spring	Soft	36-38	25-30	35-40
			Medium hard	34-36	20-25	25-30
			Hard	30-32	15-20	20-25

What The Data of your diamond wire saw In Cutting reinforced concrete

Diameter	Beads/m	Reinforcement	Hardness of stone	Speed		Life(m2/m)
				(m/s)	(m2/h)
φ10.5mm φ11mm φ11.5mm	40 pcs	Rubber Rubber+Spring	Highly Reinforced Concrete	22-28	2-5	5-7
			Normally Reinforced Concrete	20-22	1.5-3	2-4
			Steel/Metal structure	18-20	0.5-2	1-3

We also can make other diameter like 7.5mm, 8.0mm, 8.5mm,9.5mm, 10mm
