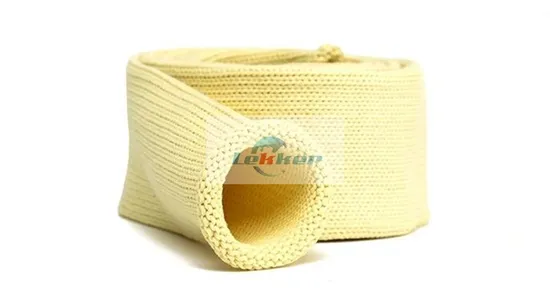

Aramid Tape Sleeve, Aramid Tape Kevlar Rope, Kevlar Aramid Tape Sleeve, Aramid Tape Kevlar Sleeve with Factory Direct Sale Price
| US$5.00-50.00 | 1 Meter (MOQ) |
Basic Info.
Model NO.
LKT006
Technics
Braided or Twisted
Fiber Length
Combination of Short Fibers and Continuous Filament Yarn
Number of Shares
Multi-Ply
Pattern
Braided or Twisted
Type
Braided
Coarseness
Fine Yarn
Structure
Multifilament Yarn
Application
Aerospace/Military/Climbing/Industry
Breaking Strengh
1.2kn-400kn(up to Size)
Size
Customized
Shape
Flat, Aramid Sleeve, Square, Round
Rope Type
Braided Rope
Color
Yellow, White, Black, etc
Working Temperature
0-500ºC
Elongation at Break
3%
Place of Origin
China
Raw Material Origin
USA, Japan
Roll Length
50m or Customized
Lead Time
3 Days
Sample Time
1-3 Days
Transport Package
Carton
Specification
10-100mm
Trademark
Lekker
Origin
Luoyang, China
HS Code
54025990
Production Capacity
1000000m Per Month
Product Description
Key FeaturesHigh Toughness (Work-To-Break)
High Tensile Strength at Low Weight,Lower compression strength
Low Elongation to Break, High Modulus (Structural Rigidity) Elongation at break
High Cut Resistance
Low Electrical Conductivity
Low Thermal Shrinkage
Flame Resistant, Self-Extinguishing Critical Temperature 400.F Excellent Dimensional Stability
Relatively poor compression strength
Durability
Wide Application:
It is mainly used for high temperature operation, special ship, electrical engineering, marine operations, various types of slings, suspension, military research and other fields.
Kevlar rope uses aramid /kevlar fiber as raw material with advantages of high temperature resistance, wear resistance, cutting resistance, high strength, no scratch glass, etc.The glass is heated by a furnace at a temperature of 200-500 ° C. and then cooled by a grill. The glass is exposed to cold metal rollers due to a large temperature difference. The aramid roller rope spirally cools the roller of the furnace, Metal liner between the formation of padding, the glass can not be exposed to low temperature metal roller, glass to avoid scratches, collisions, cold burst. Thereby improving the yield of steel.
Basic Index:
| Function | Transport Glass |
| Color | Yellow or White |
| Application | Quenching section of glass tempering furnace |
| shape | square, or round |
| Composition | 100% kevlar (poly aramid) |
| Breaking strength | 353N |
| Appearance | Rope |
| Color | Yellow |
| Character | High temperature resistance (≥500ºC) |
Common sizes:
| Flat Type Kevlar Aramid Rope | ||
| 8. x 3 mm | 12 x 3 mm | |
| 8 x 4 mm | 12 x 3.5 mm | |
| 8 x 5 mm | 12 x 4 mm | |
| 9 x 3 mm | 12 x 5 mm | |
| 9 x 4 mm | 12 x 5.5 mm | |
| 10 x 3 mm | 13 x 3 mm | |
| 10 x 3.5 mm | 13 x 3.5 mm | |
| 10 x 4 mm | 20x3 mm | |
| 10 x 5 mm | 20x3.5 mm | |
| Square Type Kevlar Aramid Rope | ||
| 4 x 4 mm | 8 x 8 mm | |
| 5 x 5 mm | 10 x 10 mm | |
| 5.5 x 5.5 mm | 12 x 12 mm | |
| 6 x 6 mm | 15 x 15 mm | |
| Round Type Kevlar Aramid Rope | ||
| Diameters | 1mm, 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm | |
| Kevlar Aramid Sleeve Rope | ||
| Diameters | 8mm, 10mm, 12mm, 14mm, 18mm, 20mm, 25mm, 30mm, 50mm, 55mm, 60mm, 65mm, 70mm, 80mm, 85mm, 90mm, 100mm | |
| Not all specifications listed here, pls contact us for more specifications | ||
