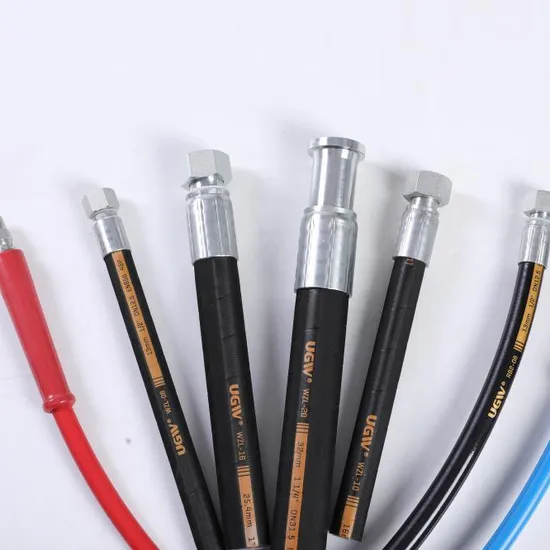

Rubber Hydraulic Hose En853 2sn Pressure Hose Flexible Hose Pre-Assembly

Product Description

Rubber Hydraulic Hose En853 2sn Pressure Hose Flexible Hose Pre-Assembly Description of all size 1/4 to 2 inch hydraulic hose
1.Construction of SAE 100 R2AT
-Tube: oil resistant synthetic rubber.
-Reinforcement: one high tensile steel braid.
-Cover compound : abrasion, ozone and hydrocarbon resistant synthetic rubber.
2.Constant operation: -40 °C +100 °C (-40 °F +212 °F)
air max T = +70 °C (+160 °F)
Safety factor: 1:4
3. Color available: black,or custom
4. Surface: smooth & cloth
Product Description:
SAE 100 R2 technical data

Items number	Hose I.D.	Hose O.D.	Max W.P.		Min B.P		Min.B.R	Weight
	in	mm	Mpa	psi	Mpa	psi	mm	Kg/m
2SN-3	3/16	14.1	41.5	6019	165	23930	90	0.27
2SN-4	1/4	15.7	40.0	5801	160	23204	100	0.34
2SN-5	5/16	17.3	35.0	5076	140	20304	115	0.39
2SN-6	3/8	19.7	33.0	4786	132	19144	130	0.49
2SN-8	1/2	23.0	27.5	3989	110	15956	180	0.59
2SN-10	5/8	26.2	25.0	3625	100	14500	200	0.71
2SN-12	3/4	30.1	21.5	3118	86	12472	240	0.89
2SN-16	1	38.9	16.5	2393	65	9430	300	1.37
2SN-20	1 1/4	49.5	12.5	1813	50	7252	420	2.27
2SN-24	1 1/2	55.9	9.0	1305	36	5220	500	2.44
2SN-32	2	68.6	8.0	1160	32	4640	630	3.00

Quality Control:
Packing of all size 1/4 to 2 inch hydraulic hose
1. Woven Belt 20meters/roll, 50meters/roll, 100meters/roll
2. Wooden box or wooden frame (common for hose assembly packed)
3. Special packing is available according to customers' requirements.

FAQ:
Q1.Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q4.How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
