Network Cable S/FTP Category 6 4-Pair Double-Shielded Communication Data Cable

Product Description

Product Description Category 6 shielded cables are used in structured cabling data transmission cables; carrying digital, voice, data and video signals for all Class E links and Category 6 applications, including ISDN, 10 Megabit Ethernet, 100 Megabit Fast Ethernet, 1000 Megabit Ethernet, 4/16Mbit/s Token Ring, TP-PMD/TP-DDI 125Mbit/s, ATM 155Mbit/s, ATM 622Mbit/s.
Application
Meets or exceeds requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E channel standards.
Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5 Category 6 component standards.
Meets requirements of IEEE 802.3af and IEEE 802 3at for PoE applications
Third party tested to comply with ANSI/TIA/EIA-568-C.2
Descending length cable markings enable easy identification of remaining cable which reduces installation time and cable scrap.
Color Availabillity:Additional cable colors available.
Electrical Characteristics
Impedance:1-250MHz 100±15(Ohms)
Rated temperature:75ºC
DC Resistance Unbalance(%):Max2.5
DC resistance 20ºC:8.4(Ohms/100m)
Pair-to-Gruond Capacitance Unbalance:330(pF/100M)
Insulation Resistance:>5000MΩ*Km
Dielectric strength:DC 2500V 2S
Product Features
Meets ANSI/TIA-568.2-D 250MHz test and can be extended to 550MHz.
Physical foam technology for improved electrical performance.
Provide cable length marking to reduce waste.
Supports high-speed transmission of voice, data and video signals.

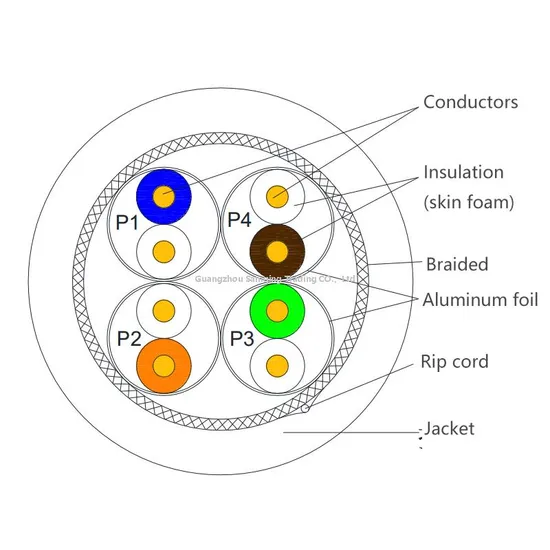

Each pair is individually wrapped with metal foil and shielded with metal mesh on the outside of the 4-pair twisted pair, greatly reducing the loss of near-end crosstalk and far-end crosstalk and providing reliable resistance to external crosstalk.

Conductor
Conductor	Solid Bare Copper 23AWG
Insulation	HDPE
Total number of insulated conductors	8,txisted in 4 pairs
Color code	White-Blue/Blue,White-Orange/Orange,White-Green/Green,White-Brown/Brown
Individual pair shield	None
Overall shield	None
Drain wire	None

Product Parameters
Specification, size, installation requirements

Number of cable pairs									4 pairs
Wire Pair Color									White-blue, blue, white-orange, orange, white-green, green, white-brown, brown
Conductors		Structure							Single strand
		Material							Annealed Round Copper
		Wire gauge							23AWG
Insulation		Core wire outside diameter							1.36±0.10mm
		Material							Physical foam PE
		Color							color strip
Shielding materials									Single-sided aluminum foil / tinned copper wire
Rip cord									150D Polyester straight tow
Sheathing		Material							PVC
		Outer diameter							7.8±0.3mm
		Average thickness							0.6±0.1mm
		Printing							SHIP-TECH SYSTEM CABLE S/FTP CAT6 4PAIRS 23AWG ISO11801 D187-G HSYPVP-6 4*2*0.57P YD/T1019-2013 001M…305M
Roll Forming Method									Wooden plate flat winding
Installation temperature									0ºC~+60ºC
Use and storage temperature									-20ºC~+60ºC
Cable reference net weight									18.8kg/305m

Mechanical properties

elongation at break of a conductor									≥15%
elongation at break of insulation									≥200%
tensile strength of insulation									≥10MPa
tensile strength of sheath before aging									≥13.5MPa
tensile strength of sheath after aging(100ºC±2ºC,168h)									≥12.5MPa
change rate of tensile strength of sheath after aging									±20%
elongation at break before aging of sheath									≥150%
elongation at break after aging of sheath(100ºC±2ºC,168h)									≥125%
change rate of fracture elogation after aging of sheath									±20%
the insulation core is broken or mixed									uninterrupted line without mixed line

Electrical properties

Characteristic impedance

1-100MHZ

100±15Ω

100-250MHZ

100±22Ω

250-500MHZ

100±25Ω

Single conductor DC resistance

≤9.5Ω/100m

DC resistance imbalance within the wire pair

≤2.0%

Dielectric strength DC between conductors

1000V,1min No breakdown

Propagation delay difference

≤45ns/100m

Propagation delay

≤536ns/100m

Operating capacitance

≤5.6nF/100m

Rated transmission rate (NVP)

78%

Insulation resistance

≥5000MΩ·km +20ºC DC (100-500)V

Transmission performance

Frequency	IL(max)	RL(min)	NEXT(min)	PSNEXT(min)	ACR-F(min)	PSACR-F(min)
(MHZ)	(dB/100m)	(dB)	(dB)	(dB)	(dB/100m)	(dB/100m)
1	2.0	20.0	74.3	72.3	67.8	64.8
4	3.8	23.0	65.2	63.2	55.7	52.7
10	6.0	25.0	59.3	57.3	47.8	44.8
16	7.6	25.0	56.2	54.2	41.7	38.7
20	8.5	25.0	54.7	52.7	43.7	40.7
31.25	10.7	23.6	51.8	49.8	37.9	34.9
62.5	15.4	21.5	47.3	45.3	31.8	28.8
100	19.8	20.1	44.3	42.3	27.8	24.9
200	29.0	18.0	39.7	37.7	21.7	18.7
250	32.80	17.3	38.3	36.3	19.8	16.8

Flame retardant performance
Comply with GB/T 18380.22-2008 single insulation fine wire and cable flame vertical spread test - diffusion type flame test method

Distance between the lower edge of the upper support and the start of charring								>50 mm
Distance between the lower edge of charring and the lower edge of the upper support								≤540 mm

Product packaging

Plate surface*Disk inner longitude*Disk inner height (cm)									Φ37*Φ15*L27cm
Cable length									305m/wooden plate
Full container reference weight									21.2kg
