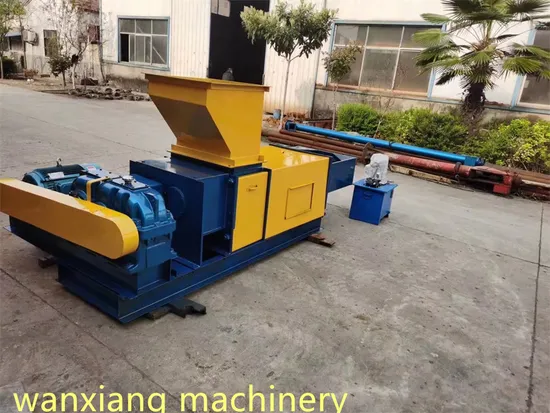

Palm Oil Mill Extractor Press Machine Plant for Expelling Oil From Palm Ffb Factory

Product Description

Palm Oil Pressing Machine Palm Fruit Oil Extraction Palm Kernel Oil Presser Palm Oil Machine
About Palm Fruit/kernel Oil Press: The series include 2 models,the single-screw and the twin-screw types. The single screw model marks merits of simple/practical performance,with smooth oil output and intact palm husks. As contrast,the twin-screw model comes with automatic hydraulic control system,reaching a capacity of between 1-15 TPH,ideal for medium-large palm oil pressing enterprises.
Palm Fruit Oil Pressing Processing Plan:
Palm Fruit Oil Press Machine Structure:
Standard Technical Parameters of the Palm Oil Pressing Machine Palm Oil Extraction Mill Plant:

MODEL	CAPACITY (T/D)	POWER (KW)	DIMENSIONS (MM)	Hydrau Power	WEIGHT (KG)
Palm-0.5	0.3-0.5	4KW/8HP	1400*600*820	/	300
Palm-1	1	7.5	2600*1100*700	2.2	1000
Palm-3	3	15	2700*1200*1000	3	1800
Palm-5	5	18.5	3470*1560*1500	4	2200
Palm-15	15	30	5200*2100*1650	4	4500

Product Advantages:
Factory Advantages:
Your Wise Counsel with Oil Pressing Operations:
1. Upon starting the machine,control the feeding amount each time in a gradually increasing manner,in the meanwhile check drycake & oil extruding status and adjust the oil cake thickness accordingly. After the adjustment,ensure a smooth and evenly feeding each time.
2. Mangage your drycake thickness in the below fashion:
First pressing,cottonseeds 1-1.5mm,soybeans 1-2mm,peanut 2-2.5mm,rapeseeds 1-2mm; Second pressing,soybeans 0.5-1mm,peanut 1-1.5mm,rapeseeds 0.5-1mm; Third pressing,peanut 1-1.5mm.
3. Oil extruding rate will mount to standard after machine reaches 80C.
4. While it runs on,wood sticks can be emplyed to blend in the hopper to avoid conjestion.
5. When you wanna stop the machine,continue feeding in the waste drycakes to extrude all left-inside oil cakes,before you plug out the screw shaft and cleanse the chamber.
6. Handle with care the screw shaft when taking out to avoid damage, place it vertically so weight doesnt disform the screw tread.
Contact us today and get catalog and quotation for your desired Spiral Oil Press!
