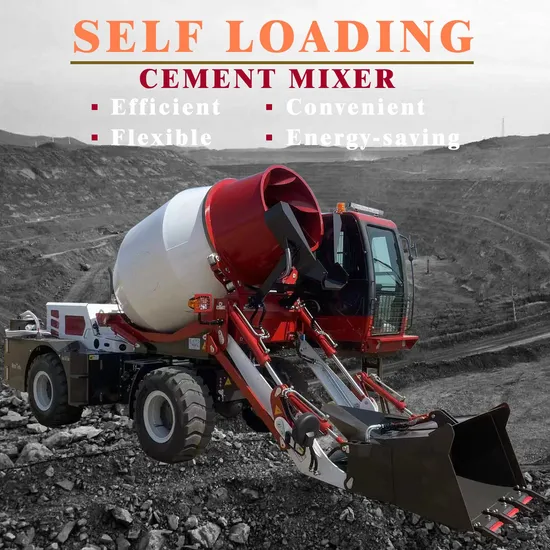

Discount Offer! ! ! New Mini 3.5 M3 Cubic Meter Cement Concrete Self-Loading Articulated Mobile Mixing Mixer Truck with Pump for Low Price Sale

Product Description

Q345 manganese steel frame, excavator luxury cab
driving video, cement bucket, air conditioning
Drum rotation: Discharge Port Height 1.8 meters, cab and tank horizontal rotation 270 tank can be raised and lowered
Articulated mobile chassis
cab and tank can achieve synchronous rotation

DJH9035 SELFLOADING MIXER TRUCK
MODEL NO	Model: DJH9035
TYPE	Articulated mobile chassis, self loading, mixing, transporting
FUNCTION	concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging
PRODUCTIVITY	Up to 4.5 batches per hour, 15.5 cubic hours
drive	4 x 4
steering	Front steering
ENGINE	Yuchai Power Ycd4j22t Foshan 16, diesel, water-cooled, 4 cylinders, 2600 RPM, rated power 85KW
SPEED	HIGH SPEED: 0-40KM/H; LOW SPEE:0-25KM/H
Gear number	Three forwards, three backwards
CAB	Driver's seat: Widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat
TIRE	TIRE: 12R-22.5 steel wire high pressure vacuum tire
Spiral blade in tank	Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right
mixing tank 270°discharges	The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle
TIPPING CHUTE	equipped with two 150CM Removable Chute to increase the length of discharge
Bucket:	0.65 cubic, hydraulic gate
Bucket discharge switch	Hydraulic gate, electric control
OPERATION HANDLE	ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE
BRAKE	Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper
Steering:	Hydraulic articulated steering
Power System	24V
Fuel tank Water tank	Fuel tank / Water tank: 1 * 800 litres water tank, 135 litres diesel fuel tank, 135 litres hydraulic fuel tank
Water Supply System:	self-priming driven pump, 24V self-timing Centrifugal pump, car washing machine
HIGH-PRESSURE WATER PUMP WASH	HIGH-PRESSURE WATER PUMP WASH
Weighing system	Electronic weighing system (language optional)
weight	8100kg
ALARM LAMP	STANDARD CONFIGURATION
RADIO	STANDARD CONFIGURATION
Length, width, height / wheelbase / Wheelbase:	7100mm*2750mm*3300mm*2700mm*2200mm
ESCAPE HAMMER	STANDARD CONFIGURATION
Astern sound prompt	STANDARD CONFIGURATION
Turning radius	2900 mm
Other: Q345 manganese steel frame, excavator luxury cab, driving video, cement bucket, air conditioning Drum rotation: Discharge Port Height 1.8 meters, cab and tank horizontal rotation 270 tank can be raised and lowered Transmission Mode: The engine is directly connected to the 280 split Torque converter, and is connected to the gearbox with double high and low speed through the transmission shaft to realize four-wheel drive CLIMBING: 40 °

About Us
Our Advantages
1.Why choose us?
Choose our construction machinery because we provide efficient, reliable and safe construction solutions. Our products use advanced technology to ensure efficient construction, while focusing on energy conservation and environmental protection, in line with the concept of sustainable development. We have a strong brand strength and a complete after-sales service system, and can provide customers with all-round support. Whether it is a large-scale engineering project or a daily construction task, our construction machinery can meet your needs and help you successfully complete the construction task.
FAQ Q1: How long is the Warranty for DAOJ product? A1: DAOJ provides 12 months or 1000 hours for the whole machine from on board time. Q2: How about the delivery time?
A2: Usually DAOJ producing time is 15- 40 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: What kind terms of payment can be accepted?
A3: :Normally we can work on T/T term or L/C term.
Q4: Can DAOJ provide customized products? OEM products or ODM products?
A4: Yes, DAOJcan provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special request.
Q5: Could we request our own color for the products?
A5: Yes, of course
