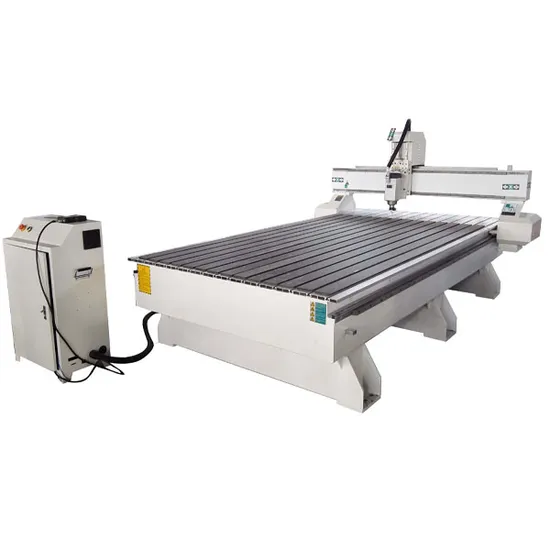

4 Axis CNC Wood Carving Machine 1325
| US$4,100.00-4,600.00 | 1 Piece (MOQ) |
Basic Info.
Spindle Number
Single-Spindle
Feed Mode
Manual
Controlling Mode
CNC
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
Control System
DSP
Inverter
Sunfar Inverter
Table
Vacuum Adsorption Table
Guide Rail
Taiwan Hiwin Square Guide Rail
Motor
Stepper Motor
Transmission
Helical Rack
Spindle Power
Water Cooling Spindle
Spindle Speed
6000-24000
Lathe Bed
T-Shape Heavy Duty Bed Structure
Application
Wooden Industry
Transport Package
Plywood Package
Specification
1300*2500*200mm
Trademark
ZK
Origin
Jinan Shandong
HS Code
8465990000
Production Capacity
100
Product Description
Jinan cnc router machine for wood, MDFFeature:
1 Welded steel bed structure , when working its more stable.
2 Vacuum adsorption table can hold the material, improving the working precision.
3 Sunfar brand inverter
4 DSP control system
5 Water cooling spindel .
6 TaiWan high precision HIWIN square guide rail, improving working accuracy.
7 Stepper motor working mode
8 Transmission by helick rack
9 TaiWan TBI Ball Screw
10 Servo motor and SYNTEC control system is optional
Specification:
| Model | ZK 1325 CNC router |
| X,Y,Z Working Area | 1300*2500*200mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z repositioning Positioning Accuracy | ±0.02mm |
| Lathe Structure | Thick wall square tubes welding bed |
| X Structure | Taiwan HIWIN square guide rails |
| Y Structure | Taiwan HIWIN square guide rails |
| Z Structure | Taiwan TBI ball screw |
| Max.Speed | 0-30000mm/min |
| Max.Working Speed | 0-25000mm/min |
| Spindle | water cooling spindle |
| Spindle Speed | 6000-24000RPM |
| Working Mode | Stepper motor |
| Working Voltage | 380V/3ph 50HZ/60Hz for standard machine, if optional vacuum system or servo system, it need 380V 3 phase |
| Command Code | G code(*uoo,*nc,*mmg, *plt) |
| Operating System | Ncstudio control system or DSP control system( also can choose LNC or SYNTECH control system, it depends on your requirement) |
| Interface | USB |
| X,Y Working Delicacy | <0.01mm |
| Software | Type3 software or Wentai software |
| Running circumstance | Temperature: 0°C~45°C |
| Waranty | One year |
| Delivery time | 2 weeks |
