Taijia Skid resistance tester for asphalt Pendulum Friction Tester pendulum anti-slip friction tester

Product Description

Product Description

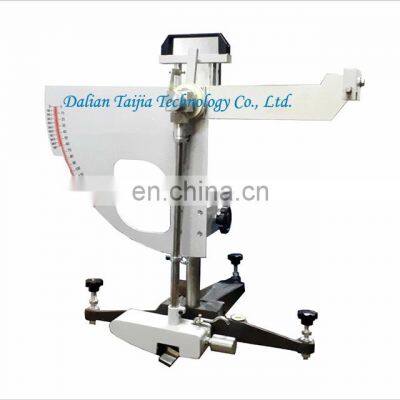

Product DescriptionSkid Resistance TesterThe Pendulum Skid Tester measures the frictional resistance between a rubber slider mounted on the end of a pendulum arm and the test surface. This provides highway engineers with a routine method of checking the resistance of wet and dry surfaces to slipping and skidding, both in the lab and on site. It is based on the Izod principle: a pendulum rotates about a spindle attached to a vertical pillar. At the end of the tubular arm a head of known mass is fitted with a rubber slider.The pendulum is released from a horizontal position so that it strikes the sample surface with a constant velocity. The distance travelled by the head after striking the sample is determined by the friction of the sample surface.A reading of Skid Resistance is obtained.pendulum skid resistance and friction testerApplicationApplication of Skid Resistance Tester• Road surface testing• Testing of new road surface materials under development• Testing of aggregates in the PSV (polished stone value) test• Testing of floors and pedestrian walkways• Flooring materials product development•Accident investigations, both traffic and pedestrian• Litigation investigationsTechnical DataTechnical Data of Skid Resistance Testera) Pendulum weight: 1500g b) Distance of center of pendulum gravity 410mm c) Forward Static Pressure From Rubber Sheet To Pavement：2263g d) Oscillation during free falling of the pendulum from slope 5o is no less than 70 times. e) Distance between oscillation center to outer edge of rubber sheet：510mm f) Package Size：40 x 75 x 75cm,weight：17kgStandard of Skid Resistance TesterBS EN 1097-8 determination of polished stone valueAS/NZS 4586:1999 slip resistance classifi cation of new pedestrian surface materialsBS 6077 Pt1 clay and calcium silicate pavers for flexible pavementsBS 7044 artificial sports surfaces: person/surface interactionBS7188 impact absorbing playground surfacesBS 8204 in-situ flooring, part 3 code of practice for polymer modifi ed cementitous wearing surfacesASTM E303 standard method for measuring surface frictional properties using british pendulumBS 7976 method of operation and calibration of the pendulum testerEN 1436: 1997 road marking materialsBS EN 13036-4:2003 road and airfi eld surface characteristicsBS 812 Pt. 144Detailed ImagesPacking & DeliveryBM-IIIPortable skid resistance and friction tester,adjustable in heightBM-III/1Sturdy case with dense foam inserts giving excellent protectionBM-III/2F’ Scale Built in, for use with small slider set for 76mm slide length. (PSV test)BM-III/3Perspex setting gauge 126 mmBM-III/4TRRL3.0, Slider 55 Road surfaces Customer can choose either typeBM-III/5Brush, For removing unwanted dirt or grit from area to be testedBM-III/6C Spanner, For attaching and releasing arm to rotating headBM-III/717mm Spanner For fitting rear footBM-III/8Water spray bottle, For wetting surface to be testedBM-III/9Feet pads, For placing under leveling feet when on soft groundBM-III/10Operating instructions, A guide to road, floor and PSV testingBM-III/11Tool setBM-III/12Metal base plate without fixing deviceRelated ProductsZBL-R630A Rebar scanner ZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientationand distribution of rebar by using an electromagnetic induction method. It also can be used to test the distribution of magneticand conductor such as cables and metal pipes in non-magnetic medium and non-conducting mediumZBL-R800 Multifuncational Rebar detector ZBL-R800 is a multi-functional integrated rebar detector which can be used for testing the thickness of protective layers, measuring the diameter, location, and distribution of rebar as well as for detecting the corrosion content of a rebar.HT-225W+ integrity voice report digital concrete rebound hammerHT-225W+ digital test hammer with digital display and voice function, for the quick and easy determinationof the strength of concrete, and hardness of construction materials. Digital and voice functions allow fasterand greater number of test, leading to better quality tests.Company ProfileDalian Taijia Technology Co.,Ltd.Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonicmeasurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thicknessmeter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Contact UsTrade terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:info at TEL:86-411-39685079Whatsapp:+8615998537470Skype:tmeasurement02web:/
