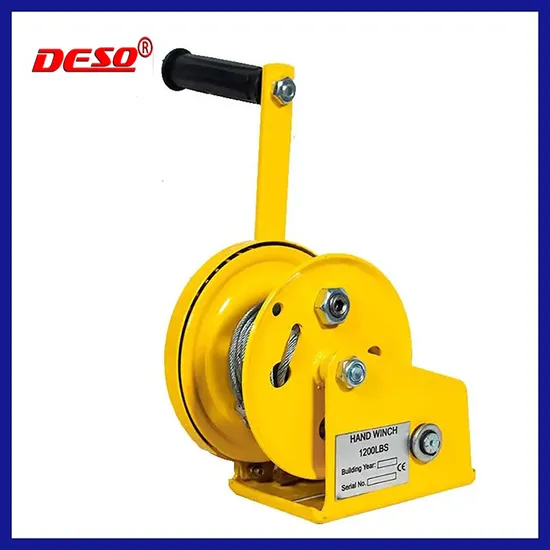

Heavy Duty Portable Automatic Brake Wire Rope or Webbing Strap Hand Winch
| US$6.00-40.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
BHW
Speed
2 Way / 1 Speed
Carrying Capacity
Weight Level
Tonnage
800-2600lbs
Reel Number
1
Running Mode
Moving
Feature
Antiseptic
Certification
GS, CE, RoHS, ISO 9001
Standard
National Standards
Cable
4-5mm
Webbing
50mm
Gear Ratio
3.2:1 ~ 10:1
Brake
Automatic Brake
Payment
T/T L/C
Delivery Time
20-40 Days
Transport Package
Carton or as Requested
Trademark
Deso
Origin
China Mainland
HS Code
84253990
Production Capacity
6000PCS Per Month
Product Description
Automatic Brake Hand Winch / Manual Winch (with cable or webbing)Features
* Automatic brake
* Be used to pull or lift loads
* One piece milled gear, fine and durable
* Fatigue tests approved
* Flush bonading gear riveting
* Working load:ranging from 800lbs to 2600lbs
* Mainly used for horizontal towing
* Soft rubber handle
* Steel wire or webbing are both OK
* Well made for long lasting
* One piece milled gear,fine and durable
* Fatigue tests approved
* Flush bonading gear riveting
* Mainly used for horizontal towing
Specifications
| Model | Capacity (kg) | Breaking strength (kg) | Cable | Webbing | Gear ratio | Waly / speed | Weight (kg/pc) |
| BHW800 | 362 | 544 | Ф4mm×6m | 50mm×6m | 3.2 : 1 | 2 way / 1 speed | 2.25 |
| BHW1200 | 550 | 825 | Ф4mm×8m | 50mm×8m | 4.2 : 1 | 2 way / 1 speed | 3.8 |
| BWH1600 | 700 | 1080 | Ф5mm×10m | 50mm×10m | 4 : 1 | 2 way / 1 speed | 5.2 |
| BHW1800 | 800 | 1200 | Ф5mm×10m | 50mm×10m | 5 : 1 | 2 way / 1 speed | 8.1 |
| BHW2600 | 1180 | 1770 | Ф5mm×10m | 50mm×10m | 10 : 1 | 2 way / 1 speed | 10.3 |
Drawing and Data
| Model | Main size (mm) | |||||||
| A | B | C | D | E | F | G | H | |
| BHW800 | 145 | 120 | 82 | 247 | 51 | 165 | 108 | 32 |
| BHW1200 | 182 | 156 | 88 | 288 | 51 | 204 | 109 | 32 |
| BWH1600 | 195 | 174 | 93 | 292 | 51 | 204 | 109 | 32 |
| BHW1800 | 244 | 200 | 108 | 292 | 60 | 312 | 109 | 32 |
| BHW2600 | 292 | 214 | 128 | 318 | 60 | 312 | 109 | 32 |
Details
Color Optional
Process
