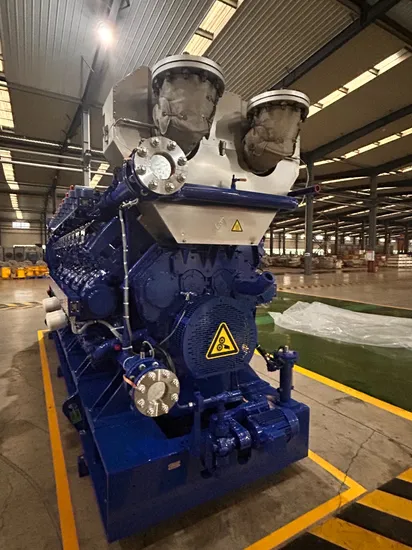

Ly2000gh-T1 1.3MW Petroleum Associated Gas High Pressure Generator Unit (APG)
| US$400,000.00-800,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LY2000GH-T1
Output Type
AC Three Phase
Gas Source
APG
Certification
CE, EAC
Power
1298kw
Standard
Standard
Length(mm)
6550
Width(mm)
1700
Height(mm)
2750
Weight(Kg)
17000
Transport Package
Wooden Box
Trademark
Liyu
Origin
China
HS Code
8502200090
Production Capacity
800/Year
Product Description
LY2000GH-T1 1.3MW Petroleum Associated Gas High Pressure Generator Unit(APG) technical parameters 50HZNOX ≤ 500mg/Nm³
| Engine Model | LY20V170-T1 | ||
| Enginepower | kW | 1298 | |
| Rated speed | r/min | 1500 | |
| Average effective pressure | MPa | 1.17 | |
| Exhaust gas temperature | ºC | ≤550 | |
| Wet exhaust gas flow rate | About | kg/h | 7442 |
| Combustion air flow rate | ±8% | kg/h | 7120 |
| Intake temperature after | ±5 | ºC | 50 |
| Ventilation capacity | About | kg/h | 36957 |
| Engine technical parameters | |||
| /Cylinder Diameter/Stroke | mm | 170/195 | |
| Displacement | dm3 | 88.5 | |
| Average piston speed | m/s | 9.75 | |
| Lubricant capacity | dm3 | 300 | |
| Average consumption rate of lubricant at full load | g/kWh | ≤0.3 | |
| Alternator | |||
| Efficiency | % | 96.3 | |
| Energy Balance | LY2000GL-T1 | ||
| 5)Output electric power5) | kW | 1250 | |
| High-temperature coolant heat | ±8% | kW | 1099 |
| Low temperature coolant heat | ±8% | kW | 115 |
| 120ºC Exhaust gas cooling to 120°C heat | ±8% | kW | 708 |
| Engine radiant heat | About | kW | 48 |
| Heat radiated by the alternator | About | kW | 48 |
| Gas consumption | ±5% | kW | 3492 |
| Electricity efficiency | % | 35.8 | |
| Thermal efficiency | % | 51.8 | |
| Total efficiency | % | 87.6 | |
| System Parameters | |||
| /High temperature coolant min/max flow | m3/h | 70/90 | |
| Kvs EngineKvsValue | m3/h | 46 | |
| Low temperature coolant flow | m3/h | 45 | |
| Kvs IntercoolerKvsValue | m3/h | 72 | |
| Engine Coolant Capacity | dm3 | 210 | |
| Intercooler coolant capacity | dm3 | 52 | |
| /High temperature coolant temperature inlet/outlet | ºC | 76/88.5 | |
