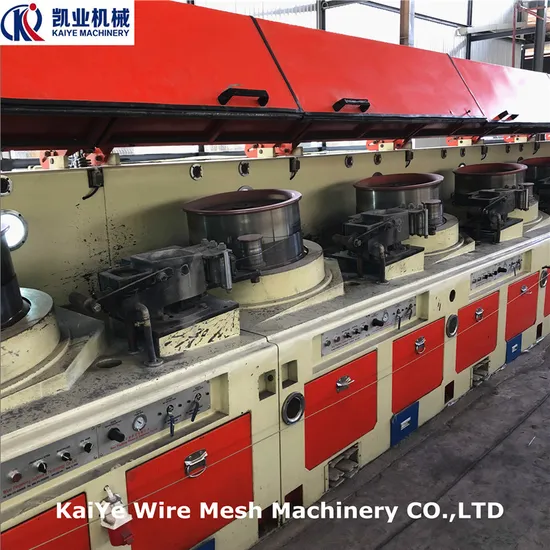

High Efficiency Straight Line Steel Wire Drawing Machine (LZ-9/560)

Product Description

High Quality Straight Line Wire Drawing Machine (LZ-9/560)
Mechanical description
1.Product Introduction
Straight Line Wire Drawing Machine are suitable for the high & low carbon steel wire below size of 14mm,with Siemens PLC & inverter control system to assure high speed & stable operation.
Low Carbon steel wire product used in mesh net, steel fiber, nail & staple making, construction, agriculture & furniture field, etc. And other steel wire product used in prestressing wire, PC wire, spring, steel rope wire, steel cord & Bead wire for tyre, etc.
2.Working flows and automation
Steel in coil →Pull up wire rack→Derusting machine→bepowder→Straight Line Wire Drawing Machine→Automatic take-up
Main Features
1) Easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution
4)As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of technology and high speed drawing.
5)Good cooling system, final wire quality is very good.
Mechanical Parameters

LZ9/560 Straight line Wire drawing machine
Capstan diameter	560mm
Capstan number	9
Inlet wire diameter	Φ6.5mm
Outlet wire diameter	Φ2.0mm-Φ6.0mm
Tensile strength	≤600mpa
Total compressibility	90.53%
Average compressibility	25.52%
Max. Speed	12 m/s
Power	18.5KW*9 (Frequency conversion motor )+22KW*9(inverter)
Mold size	Φ40mm×25
Block type	Vertical ,tilted
Take-up wire	Elephant trunk type take-up system
Die box	The mould box is composed of mixer and water cooling(4 set)
Drawing drum	Cast steel ZG45, surface surfacing and spraying tungsten carbide, HRC60. Surface roughness less than 0.8mm.
Mold box cooling	The drawing die is cooled by direct water inlet and water outlet, and the cooling effect is very good.
Tension frame	Internal tension frame.
Main frame	Welding of steel plate and square pipe.
Stop brake	Pneumatic brake
Vacuuming design	Reserve suction hole
Lighting	Each stand with separate lighting.
PLC	Siemens
Touch screen	Siemens
Low voltage electrical appliances	Delixi

Guarantee and after-service:
1. Guarantee time:one year since machine was at buyer' factory within 12 months against B/L date
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer's factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Technical support by e-mail.
