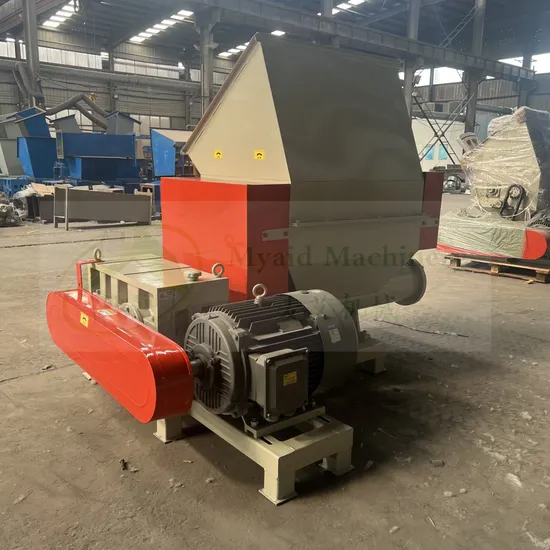

Compact EPS/XPS Polystyrene Hot Melt Machine with Dual Crushing Shafts

Product Description

The EPS Hot Melt Machine is designed to effectively crush and hot melt EPS, XPS, EPE, EPO, and other foam materials. Unlike traditional melt machines, it operates without a heater at the chamber end, offering a more efficient and eco-friendly process.
Benefits of 'Friction Produces Heat' Technology 1) Virtually no preheating time is required; materials can be fed immediately after the machine is turned on. Traditional lump machines with heaters need approximately 20 minutes to heat the chamber. 2) Produces almost no smoke, ensuring a cleaner working environment. 3) Generates virtually no smell, contributing to a more pleasant workspace. 4) Optional heater available for processing wet foam materials, as it can raise the chamber temperature for more effective melting.
The Foam Heat Melt Equipment is equipped with dual crushing shafts in the hopper for enhanced performance.
Optional conveyor available for streamlined material feeding.
Features temperature and frequency control systems integrated into the control box for precise operation.
Equipped with a robust hard-tooth reducer and a durable copper motor, ensuring reliable and long-lasting performance.
Machine Advantage
Q: Why is there no heater in the chamber?
A: The mechanical friction within the chamber generates sufficient heat to melt the crushed foam materials, eliminating the need for an electric heater, making it distinct from traditional heater machines.
Machine Parameter

Hopper Size	Capacity	Chamber Dia.	Shredding Shafts Qty	Motor Power	Machine Size
800*800mm	200kg/h	245mm	2 pcs	18.5kg	1600*1500*800
