Heavy Cutting Bed Type Milling Machine X715 X716 Metal Universal Milling Machine

Product Description

Product Description
Heavy cutting bed type milling machine X715 X716 Metal universal milling machine
The main performance characteristics: • 2000kg heavy duty, bed-type milling machine• 360° swivel head, vertical & horizontal milling available• infinitely variable spindle speeds• 3-axis ball screws• 3-axis individual servo motors driven• equipped with E-handwheels for manual control of table movement• equipped with automatic electronic lubrication pump• equipped with coolant system & coolant water tank
Product Parameters

Items	X715	X716
Working area
Table size	2100x500mm	2500x600mm
T-slot (width x No. x pitch)	20mmx4x100mm	20mmx5x100mm
Max. load of table	2000kg
Distance from spindle nose to table surface	0-650mm	0-700mm
Distance from spindle axis and table surface	8-660mm
Distance between spindle axis and column guideway	610mm	8-660mm
Travel
Longitudinal travel of X axis	1500mm	1800mm
Cross travel of Y axis	650mm	700mm
Spindle
Spindle taper	7:24 ISO50
Spindle speed	(2steps) 6-300r/min, 30-1500r/min
Main motor power	11kW
Feed
Table feed-X/Y	2.5-3000mm/min
Table feed-Z	2.5-2500mm/min
Table rapid feed X/Y/Z	6000/6000/3000mm/min
Others
Coolant motor	90W
Overall dimension	3220x2420x2800mm	4380x2520x2800mm
Net weight	7300kg	9000kg

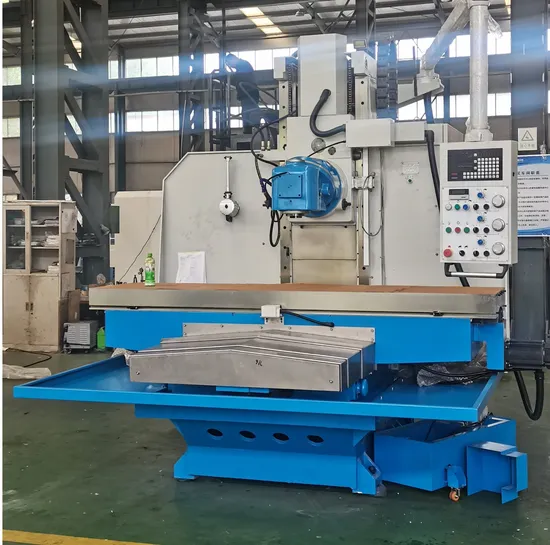

Detailed Photos

Certifications
Packaging & Shipping
standard export packing: plywood case with steel pallet, inside with plastic bag on machine.
Steel pallet: 1.strong carring capacity
2.Eco-friendly and recyclable
3.Standard export package, fumigation-free
4.Flexible and convenient for transportation
Packing Details: 2 set per plywood case 2950*2250*1500mm + 2500*2000*2250mm
Company Profile
Our factory is located in Tengzhou City, with nearly 20 years history & more than 200 employees.Products include: Gantry machining center, VMC machining center, CNC lathe,conventional manual mills (vertical, horizontal, universal, knee-type, bed-type, gantry-type etc.) Among them, about 70% of the products will be exported to Germany, Poland, Italy, France, Russia, the United States and other European and American international markets.
All products of the company have passed the international standard quality system certification ISO9001 and CE certification, please believe that we are a reliable supplier, you can fully trust our products, hope that we can establish long-term cooperation
Welcome visit our company Shandong XILI Machine Tool Co.,LTD./Tengzhou XILI Machine Tool Co.,LTD.
Address: Xingteng road, industrial area Tengzhou city, Shandong province, China.
Every year, we attend many exhibitions at home and abroad, including CIMES, CCMT, CANTON fair, EMO, Metalloobrabotka etc.
FAQ
1.What is the MOQ ? A.Our minimum order quantity is 1 set.
2. What are the main products of the company?
A. The main production of CNC machining center series (gantry, vertical, horizontal), turning and milling compound, milling machine series (CNC, lifting table, gantry, ram type) and other more than 80 varieties of specifications.
3. why should you buy from us not from other suppliers?
A. Our company has more than 20 years of experience in the field of machine tools. At the same time, with a professional R & D team, actively attract domestic and foreign advanced technology combined with independent research and development, continuous innovation. More than 140 patents have been authorized by the State Intellectual Property Office, including 14 invention patents.
4. How long is the guarantee ?
A. 12 month after machine's delivery from factory. Within waranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5. what services can we provide?
A. Accepted Delivery Terms: Usually is FOB, Others like CIF,CFR,EXW...... are also acceptable.
B. Accepted Payment Type: Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos, Other payment terms are also acceptable after discussion.
If you need any further information, feel free to contact us.
