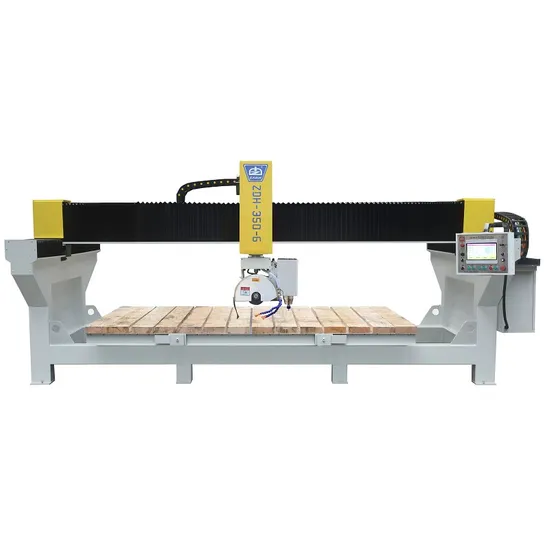

Automatic Bridge Type Granite Cutting Machine

Product Description

The infrared Bridge cutting machine is integrated structure, no need to build concrete foundation. this machine is mainly used for cutting and processing marble slabs, granite slabs, artificial stone slabs, quartz stone slabs. it has following advantages:
(1) convenient to transport and install(can be loaded in 20 GP container)
(2) This bridge saw is with blade and milling cutter together with PLC control system.
(3) The milling tool is with 7.5kw high speed electic spindle.
(4) It's easy to operate with high efficiency.
(5) The machine head can rotate from 0-360°, it can cut any many different shapes.
(6) The machine head can tilt from 0-45° for edge chamfer cutting on Every side.
(7) This machine also can do surface profiling.
(8) This is all-in-one machine with good stability and small floor space.
The bridge cutting machine consists of crossbeam, spindle box, lifting components, worktable parts, PLC control system, hydraulic system ,infrared ray unit and automatic lubrication system

Item No.	ZDH-350-6
Max processing size	3200 x 1900 x 50mm
Saw blade diameter	φ 350mm
Main engine power	15kw and 7.5kw
Total power	28kw
Outline dimension	5300 x 2800x 2700mm
Weight	4T

Feature: 1.The machine adopts Bridge integrated structure, with firm and stable bed and high stability.
2. X, Y and Z axis adopt linear guide rail, with high precision and fast efficiency. X axis has stepless speed regulation function.
3.Worktable can tilt up 0°-85° for loading slab easily.
4.Machine head can rotate 0°-360 ° in axis, with automatic tool setting function; and tilt 45° degree for automatic chamfering function, which can chamfering on four sides, forward and back, hydraulic transmission , strong stability.
5. It can cut boat shape, round shape, square sink, diamond shape and so on.
6. This is all-in-one machine with good stability and small floor space.
Details:
PLC TOUCH SCREEN
Easy to operate
MACHINE BODY:
This machine use integrated structure,The bed is firm and stable,No need to disassemble ,easy to install.
MACHINE HEAD:
Machine head can be tilt to 45 ° to do chamfering
MACHINE HEAD (MILLING TOOL):
The milling tool is with 7.5KW high speed electric spindle, with high precision and fast efficiency.


Company Profile

Workshop

Exhibition
Installation Abroad
Certifications
FAQ
1) Payment:
TT 30% for placing an order, we start to produce the machine→70% (balance payment)before shipment
2) Delivery time:
The machine can be shipped within 10 workdays when received payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical support 24 hour on line.
