Auto Link WF-1245R Customizable 12-14 Axes Camless Spring Making Machine

Product Description

Product Description

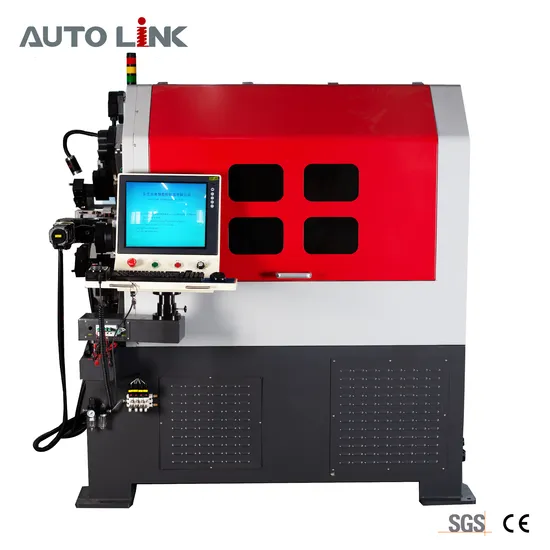

Auto Link WF-1245R Customizable 12-14 Axes Camless Spring Making Machine
Our cnc spring making machine builds complex-shaped 2D/3D output forms. It can be applied in a wide range of industries, including construction, automotive, kitchenware, aerospace, electronics, furniture manufacturing, machinery, medical equipment, custom metalworking, wire fencing, appliance production, agricultural equipment, HVAC systems, jewelry making, and art installations.
Our WF-1245R spring making machine:
The fuselage and nose are made using a one-piece casting process, offering high resistance to deformation, excellent stability, and good concentricity. Our controller display supports three language options: English, Spanish and Chinese. You can also send your own language pack for customization. It is for steel wire diameter from 1.0mm to 4.5mm. Input materials: Stainless Steel, Aluminium, Brass, Bronze, Carbon Steel, Cold-Rolled Steel, Copper, Nickel, Titanium, etc.

Detailed Photos
Product Parameters

Model	WF-1245R
Cam Type	Without Cam
Wire Diameter	1.0-4.5 mm
Axis	12-14
Max.Wire Feed Value	9999.99 mm
Min.Wire Feed Value	0.01 mm
Max.Wire Feed Speed	80000 mm/min
Slide Axis (Optional)	8 * 2.0 kw
Quill Rotary Axis	1 * 1.0 kw
Wire Rotary Axis	1 * 2.7 kw
Wire Feeding Axis	1 * 7.5 kw
Spinner Axis	1.0 kw
Free Arm Axis (Optional)	1.0 kw
Compressor Air Pressure	5-6 kg/cm
Probe	4 pcs
Dimension(M)	2.2 * 2.0* 2.1m
Weight	3000kg

Sample Display
Product Application
Packaging & Shipping
Company Profile
COMPANY PROFILE

Autolink CNC Machine Co., Ltd. is leading at R&D, production, and sales of multi-axis cam-free/cam-switching CNC spring machines/3D wire forming machines, that provides overall solutions for wire processing and spring forming. The company is highly committed to the establishment of products at the foreign market such as Southeast Asia, the Middle East, and European and American markets, with a huge welcome by the customers.
Our business policy of "Latest technology, quality assurance, and honest service" . In order to improve product quality and reduce cost with advanced technology to enhance your competitiveness in the global market.
FAQ
FAQ
Q:What information should customer provide to get wire bending machine offer from Autolink? A: Please you usually share below info to check suitable machine.
*Specific drawing
*Wire material
*Additional function you need with the machine, such as chamfering, threading, etc.
We will check best solution and offer for your requests after checking details.
Q: How can I know if Autolink wire bending machine can produce my product precision?A: If you have high precision outputs requests, would you please send check gauge or parts which this outputs will fit, we will set parts for you to fit them. Or we can send samples for you to measure
Q: How can I get training if have no experience about wire bending machine?A: We will give 5days training in our factory, we warmly welcome you to our factory to check and learn machine training before shipment. We will send manual book with machine and also can send video to show you how to run machine if you have doubts .
Q: If computer can set customer own language to let their work to run the machine?
A:Surely, we can set two languages in the controller, we can set the language you asked, we just need your help about some key translate to load into controller.
Q:What's the purchase process?
A: Understand customer needs → Recommend solutions → Customer samples → Deposit payment → Production.
