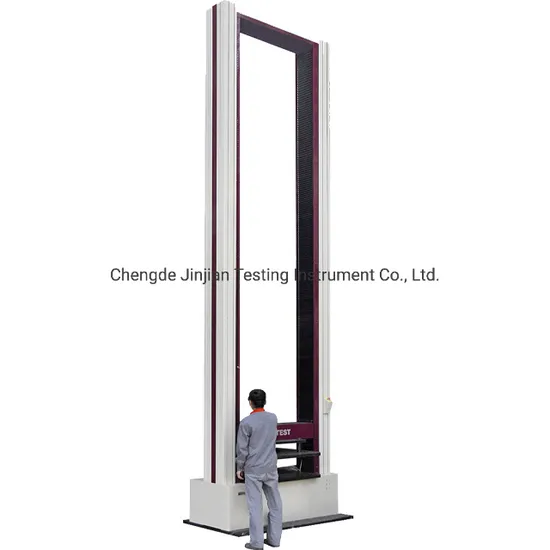

Computer Control 30/50/100kn Plastic Pipe Ring Stiffness Tester

Product Description

Ring stiffness testerOverview
This tester is used to determine the ring stiffness, compression, ring softness of thermoplastic pipes having circular cross-section. It conforms to the requirement of all kinds of plastic pipes, structured-wall pipes, PE corrugated pipes, helically wound pipes etc.
Standards
ISO 9967, ISO 9969, ASTMD 2412 and the equivalent.
Characters
1.Double-column high rigidity structure,wide range of speed control
2.Advanced closed-loop AC servo control system enables to increase the controlling accuracy and stability. High resolution AD sampling circuit is introduced to collect testing datum, even the peak value will not be lost.
3.Two/Four sensors are connected in a bridge way to strengthen the deflection resist of big pipes, also reduce mangling rate of load sensor.
4.Unique design of inner diameter measuring system makes specimen easy to install and measurement correct &direct.
5.Connect the tester to PC via RS232 to control test and download the test data, PC software may realize the functions of test data storage, statistics, analysis and test results printout.
6.Multi protection functions from mechanical & electrical design and software, including over-load, over-current and over-temperature.

Type	JJRST-1411	JJRST-1412
Max.load	30kN(50kN,100kN option)
Accuracy grade	0.5
Load resolution	1N
Load accuracy	±0.5%
Crossbeam resolution	0.001mm
Crossbeam accuracy	±0.5%
Crossbeam speed	0.5mn-200mm/min
Speed Accuracy	±1%
Pipe diameter range	110mm-2000mm	110mm-3000m
Pipe scope for inner diameter measuring system	200mm-2000mm	200mm-2000mm
Accuracy of inner diameter measuring system	±1%
Specimen width	1000mm
Power supply	220(1-15%)VAC-220(1+10%)VAC50Hz 2.0Kw
Dimension(L*W*H)	(650*1360*3400)mm	(650*1360*4300)mm
Weight	600kg	700kg
Creep Ratio Test(option)
Constant load accuracy	±1%
Timing range	1-9999h59min59s
Timing resolution	1s
Timing eror	0.1‰s
