Crushed Copper Scrap Electrolysis Equipment

Product Description

Electrolytic copper production line
An electrolytic copper equipment can improve the quality of copper as an electrical conductor and the electrolytic refining method is usually carried out in an aqueous solution. Electrolysis is the process of passing a current through an electrolytic solution or a molten electrolyte to cause a redox reaction on the cathode and anode. An electrochemical cell can undergo an electrolytic process when a DC voltage is applied. Cooper electrorefining produces copper essentially free of impurities and separates valuable impurities from copper as recover as by-products.
Electrolysis and refining of copper:
A blister copper (Cu 99%) prefabricated plate was used as an anode, a pure copper flake was used as a cathode, and an anion and an anode were placed in an electrolytic bath, and an aqueous solution of sulfuric acid (H2SO4 ) and copper sulfate (CuSO4 ) was used as an electrolyte mixture. Under the action of direct current, copper is dissolved from the anode (Cu) into copper ions and moved to the cathode, and the copper ions reach the copper obtained after the cathode is precipitated (also called cathode copper). This kind of copper, called "electrolytic copper", is of high quality and can be used to make electrical products. The substance deposited on the bottom of the cell, called "anode mud", is rich in gold and silver and is very expensive. It has great economic value to be taken out and processed.
We are the best copper cathode equipment manufacturer in China, and our equipment can produce 99.97--99.99% copper cathode from scrap copper.
Each electrolytic copper equipment production line will be customized according to the combination of the customer's raw material supply capacity and the actual production workshop scale. Tailor-made electrolytic copper production lines for customers that suit their own interests.
Equipment production capacity can be customized: 1000-30000 tons/year.

Recycled copper electrolysis equipment
NO.	Equipment name	Power or material

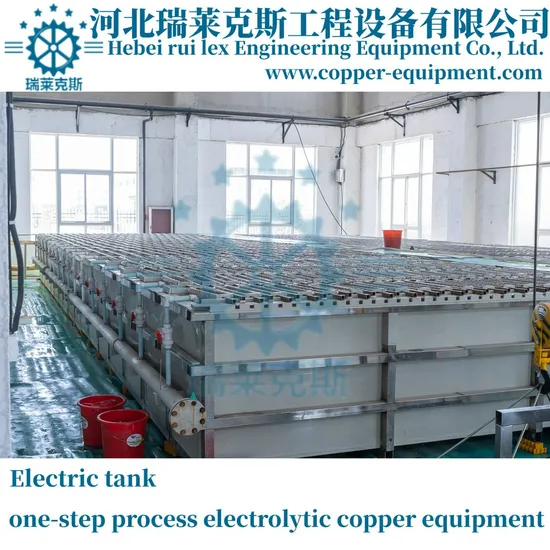

1	Electrolysis tank	PP board welding (brick and cement mixed structure)
2	Electrolyte heating boiler	Evaporation capacity 1-5 tons, can use electricity or natural gas
3	SCR rectifier	Customized according to production capacity
4	Titanium heater	Customized processing with high-quality titanium tube, and the size of the titanium heater is customized according to the equipment
5	Acid resistant pump	65FP-26
6	High slot	custom made
7	Low slot	custom made
8	motherboard	Stainless steel 316L 2B
9	production capacity	customized: 1000-30000 tons/year.
