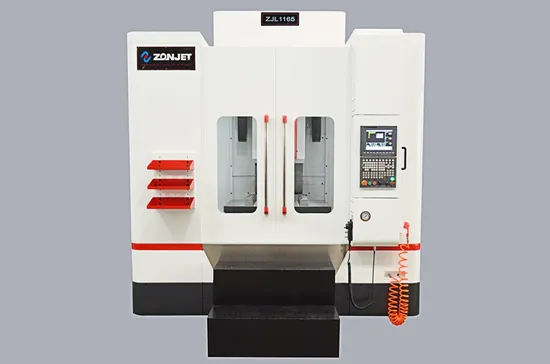

ZJL series vertical CNC deep hole drilling machine is an automatic machine tool integrating drilling, milling and boring.
The machine tool integrates modern industrial advanced technology as below:
1. The control system is Taiwan SYNTEC system, with stable and reliable performance, convenient operation and programming, and perfect and timely after-sales service.
2. The moving parts adopt high-precision, ball screw and linear guide rail to achieve accurate positioning in the movement of the machine tool.
3. The cooling system of the machine adopts a remote control device, which can adjust different flow and pressure according to the size of the drill hole, different materials, chip discharge, accuracy requirements, etc., so as to achieve the optimal supply of coolant.
4. The main shaft guide part is driven by a single oil cylinder, with smooth operation and ingenious structure, and the guide sleeve is evenly stressed; Intermittent blowing function can timely and effectively clean up the chip accumulation during processing.
5. The main shaft is a well-known brand in Taiwan, featuring high bearing accuracy, large torque, low noise, etc; The main shaft drive part is driven by high torque toothed pulley, and the modular design of high speed is used to effectively extend the service life of the main shaft with the constant temperature device of the main shaft.
Due to the adoption of the above advanced technologies, the performance, accuracy, processing range, operation and working efficiency of the machine tool have reached the advanced level of similar machine tools.

item				ZJL1165
Processing capacity			Drilling aperture range	Φ1.5~φ20mm
			Max. drilling depth	300mm
Processing range			X X axis processing range	1165mm
			Y Y axis processing range	600mm
			Z Z axis processing range	600mm
Working table			Dimension of working table	1300×600mm
			Max. Loading capacity	1.3Ton
Spindle		The spindle taper hole		BT40
		Max. Speed of spindle		10000rpm
		Deviation accuracy of spindle inner hole		0.005mm
		Quantity of guide sleeve support frame		1pcs
Feed speed		X,Y,Z Fast move X, Y, Z		10m/min;10m/min;10m/min;
		Z Z drilling feed rate range		0-120mm/min(According to material tool reference data)
Power parameter		Spindle servo motor		11kw
		X X axis servo motor		5.5 kw
		Y Y axis servo motor		5.5 kw
		Z Z axis servo motor		5.5 kw
		Total power		24 kw
Cooling system	Max. Pressure of cooling system			2-110 kg/cm2
	Max. Flux of coolant liquid			6-17L/min
	Capacity of cutting oil tank			200L
	Motor power of oil pump			5HP
	Magnetic filtration accuracy			20um
Precision parameter		Aperture precision		IT2~IT5
		Harshness of Hole Surface		Ra ≤1.6-3.2μm
		Tolerance between the Hole Axis and Standard		0.002-0.02/100(P20,∮10mm)
Others Others		Weight		7Ton
		Floor area of machine(Length*Width)		3000mm×2850mm
		Height		2900 mm
