Plastic Parts Molding Injection Auto Components Tooling CNC Machine Molding

Product Description

Our factory is located in Ningbo, near Shanghai. It is a professional manufacturer of injection molding machines, injection molds and auxiliary equipment. The range of injection molding machines is from 50 tons to 3000 tons, and the tensile resistance is from 40000 g. Machine family:
A) Standard injection molding
Machine
B) PVC injection molding machine;
c) PET injection molding machine;
D) Two-color ejector;
E) Fully hydraulic injection molding;
F) All-electric injection molding machine; Full injection

China servo injection molding machine.

A. modulus of capacitance: The position, size, and maximum allowable modulus of capacitance and minimum closure thickness of the injection molding machine guide pillar (Green column).standard injection molding machine manufacturer

B .nozzle parameters: spherical diameter of the nozzle, nozzle aperture, nozzle outer diameter, maximum nozzle extension length, positioning aperture.standard injection machine. C. code mold parameters: code mold hole, slot size.ce standard injection molding machine. D .Ejection mechanism: The position of the ejection point and the diameter of the ejector rod, and if necessary, the ejection force and ejection stroke are also provided.
E. Mold opening stroke and maximum opening distance.plastic injection machine

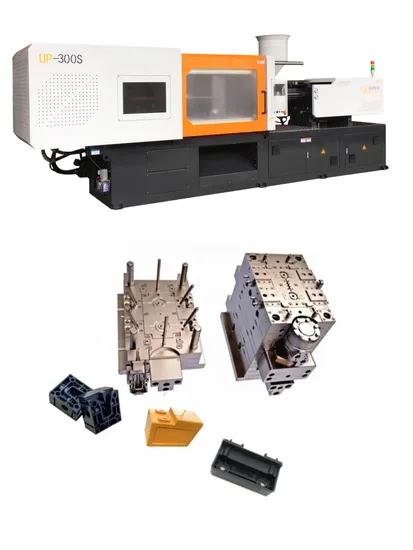

Technical Parameters	Model UP-300T
Injection Unit	A	B	C
Screw diameter (mm)	60	65	70
Shot Volume (cm3)	806	946	1096
Injection weight (g)	725	851	987
injection pressure (Mpa)	170	145	107
Screw speed (rmp)	220
Clamping Unit
Clamping force (KN)	3000
Open stroke (mm)	600
Max Mold height (mm)	620
Min Mold height (mm)	200
Space between tie bars(mm)	620*620
Ejector force (KN)	70
Ejector stroke (mm)	150
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	30(29)
Heating power (KW)	18.5
Machine dimension (M)	6.3*1.75*2.37
Machine weight (T)	9.3
Oiltank cubage (L)	400

FAQ
1: Are you a trading company or a manufactory?
We are a manufactory, we supply the factory price with good
quality, welcome to visit !
2:Do you have QC or any safety standards for your plastic injection molding machine?
yes,we have established a highly strict quality control department to guanrantee good quality.
3:Why choose our plastic injection molding machine?
High quality with competitive price
4::How about quality control in your factory?
"Quality is first, Customers are friends".
5:Can you help us with the shipment of this machine ?
Yes , with honor ,we have our special shipment company which
already cooperate
