Cloudengine S5735-L48P4XE-A-V2 98012120 Gigabit Switch

Product Description

Product Description
S5735-L48P4XE-A-V2 (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2*12GE stack ports, PoE+, 1*AC power) Item Details

Description	S5735-L48P4XE-A-V2 (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2*12GE stack ports, PoE+, 1*AC power)
Part Number	98012120
Model	S5735-L48P4XE-A-V2
First supported version	V600R022C01

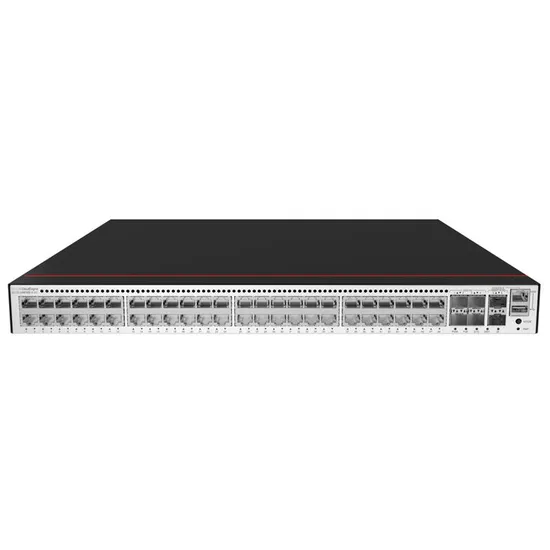

Detailed Photos


Product Parameters
Item Specification

Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	6.10 kg (13.45 lb)
Weight with packaging [kg(lb)]	8.90 kg (19.62 lb)
Typical power consumption [W]	63.53 W
Typical heat dissipation [BTU/hour]	216.77 BTU/hour
Maximum power consumption [W]	Without PoE: 85.41 W Full PoE load: 1002.49 W (PoE: 846 W)
Maximum heat dissipation [BTU/hour]	Without PoE: 291.43 Full PoE load: 3420.61
MTBF [year]	46.89 year
MTTR [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	67 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	55 dB(A)
Number of card slots	0
Number of power slots	1
Number of fans modules	2
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100-240 V AC; 50/60 Hz
Input voltage range [V]	AC input: 90-290 V AC; 45-65 Hz
Maximum input current [A]	The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Eth Management port	Not supported
USB	Supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±6 kV
Power supply surge protection [kV]	Differential mode: ±6 kV; common mode: ±6 kV
Types of fans	Built-in
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from left, front, and right and air exhaust from rear
PoE	Supported
Certification	EMC certification Safety certification Manufacturing certification
