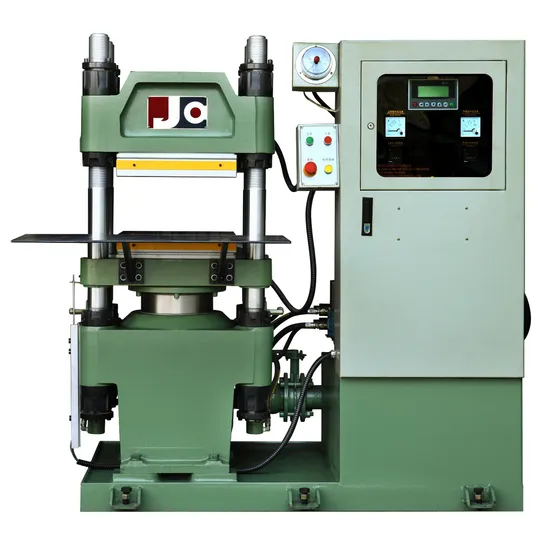

Vacuum Hydraulic Vulcanizing Molding Machine, Oil Seal Making Moulding Press Machine

Product Description

Hydraulic Vulcanizing Machine for Rubber Oil Seal is a specially developed compression molding machine to produce kinds of oil seals for automobile,machineries.bearings,etc.It features automated operation and high efficiency to produce rubber oil seals.
Features for our Hydraulic Vulcanizing Machine for Rubber Oil Seal:
1.The world-class brand vacuum pump&vacuum chamber provide highly efficient vacuum suction effect for the entire mold inside the heating platen, making the rubber materials more dense and free of air bubble,ensuring perfect final finished rubber products to be made. Also because of enclosed vacuum chamber,the temperatuer is more well preserved and stable,saving heating energy and improve the curing performance.
2.Our Hydraulic Vulcanizing Machine for Rubber Oil Seal is installed with integrated hydraulic circuit providing various piping functions on the circuit boards, reducing piping to a minimum. The oil cooler ensures long service life of the circuit valves.
3.Hydraulic pressure & speed control system adopt optimized and advanced proportional pressure valve and proportional flux valve with loop circuit feedback control from PLC,realizing reliable and smooth "high speed-low speed "clamping operation.
4.The main components of the Hydraulic Vulcanizing Machine for Rubber Oil Seal, like the top base,middle base and cylinder body all are made of premium ductile cast iron,ensuring the durable high stability of the machine even after many years service,won't have the problem of deformation.
5.Parallelism of hot plates is controlled with the tolerance of 0.03mm per 300mm.
6.The temperature tolerance of each point on the upper and lower plates is within ±2ºC. Auto PID temperature calibration.
7.Preheating function is available to set on the HMI (touch screen).
8.Replacement time of lubricating oil can be set up from touch screen and auto alarm.
9.Time-counting for machine working time.Safety interlock for movement, fool-proof design. Automatic abnormal alarm function.
10.PLC monitor entire production,hundreds of production recipes can be saved and USB data transmission conveniently.Remote Touch screen password setting.
11.Remote control provides more convenient after sales service,even the customers are far away in another country, our engineer can reach your control system to conduct necessary maintenance or update Automatic Compression Molding Machine for Rubber Oil Seal with the newest system.
12.Pressure protection design ensure the safe working of the machine.
13.Safety light curtain device to prevent operators from potential injury.
14.Automatic retrieval of machine faults, automatic display of machine action positioning.
15.All hydraulic and electric control components for our Automatic Vulcanizing Press for Rubber Oil Seal adopts world-class famous brand.
16.Various high efficient rubber product demoulding devices are available for options, such as sliding plate, side air jig unit,mold turning, bottom ejector,hydraulic core lifters,etc,depends on your product strucutre, you can choose 2RT, 3RT or 4RT system to take out the final products automatically from the mold.
17.Single station,double stations or multi-stations are available for options..
18. Our Hydraulic Vulcanizing Machine for Rubber Oil Seal is hydraulic-power-mechanics heavy duty structure desgin,whole machine is more stable operation, and also solid and durable.
19.CE safety standard option is available.
Technical specification:

Clamping force (tonnage)	Main piston diameter	Platen size (mm)	Mold holder size(mm)	Main piston stroke(mm)	Max.daylight opening (mm)	Power consumption (KW)
80T	φ225	250x300 290x320	290x320 330x330	140	150/180	6.6
100T	φ250	350x400	390x420	140	150/180	8.4
150T	φ300	450x480	500x520	140	150/180	16.9
250T	φ400	570x610	620x620	140	150/180	26.3

Note:The table only list the normal popular models,more sizes&capacity can be customized. Workshop
