ISO Multi-Disc Fiber Thickener for Paper Pulp Recycled Mill

Product Description

1, High quality
2, High cost-effective
3, Sincerely cooperate
Multi-Disc Thickener for Paper Pulp Recycling Machine
Application:
By adopting the vacuum coming from the drop leg extraction, and also with helps from filtration media, Disc Filter separates the soilds & filtrates and gets different quality filtrates divided by the distribution valve. Currently Disc Filter is widely used for white water recycling and pulp thicking. When used as saveall, it recycles water and fibers; when used for thicking, it achieve high production rate via unit machine but low fiber loss content. Outlet consistency can reach to 12-14%. Its performance has successfully reached to the national advanced standards.
Advantage: Sectors with different structures, large effective filtering area, economical, high strength, and easy to replace. All models and sizes available, filtering areas can be modified upon capacity requirements. Distribution plate made of special wear resistant material with good seal effect.
Main Technical Parameter:

Model	DF37	DF45	DF52
Filter Disc Diameter(mm)	3700	4500	5200
Filter Number	6-20	8-20	10-20
Single Filter Disc Area(m²)	17	26	38
Main Driving Motor Power(kw)	7.5-15	11-18.5	15-37
Material	Inlet Consistency(%)	Outlet Consistency(%)	Capacity(Throughput)(t/d)
OCC pulp, Chemical Wood Pulp	0.5-1.2	8-12 (Adjustable)	0.7-1.1
Deinking Stock,Straw Pulp	0.5-1.0	8-12 (Adjustable)	0.5-0.7
White Water Recovery	0.3-0.5	3.5-4.5 (Adjustable)	1.6-3.8m³/m².h

Remark: The yield will change due to different types of pulp, consistency and other factors. The capacity in the table is only for selection.

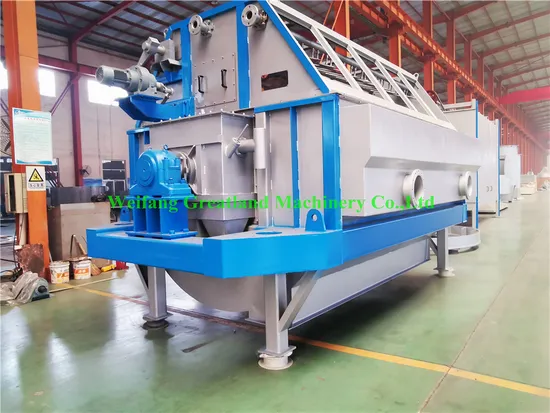

PHOTOS:
OUR SERVICE
Greatland has professional technical team for installation, commissioning, and related services, also has a very wholesome file system, contacts with the user regularly. Greatland will try best to solve the problems from the customer.
Within the quality guarantee, Greatland settle the problems on site.
ABOUT US
GLM is an integrated company dedicated to the pulp and paper industry associated with planning, design, research, development, producing, delivery, testing and training. Besides, GLM was funded by the Pulp and Paper Design Institute, Pulp Equipment Mill and Paper-making Machinery Company, and in turn gathers together talents from each part. Furthermore, an impressive result has been achieved in recent years.
F&Q
Q.:Are you a factory or trading company?
A.: We are a factory and manufacturer.
Q.:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.
Q.:Where is your factory located? How can I visit there?
A.:Our factory located at Shandong, China.You can fly to QINGDAO international airport directly. We will arrange to pick you up.
Q.:What's service or guarantee can you offer?
A.: One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.
