Heavy-Duty Double Ribbon Mixer with Tailored Customization Options

Product Description

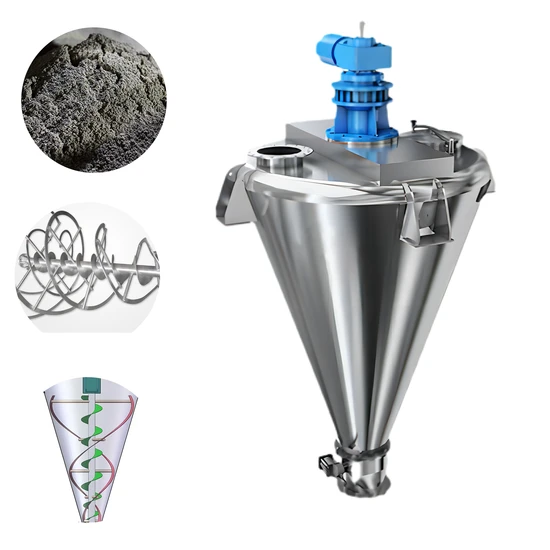

The Conical Screw Ribbon Mixers are indispensable for the efficient mixing, stirring, and blending of powders, granular materials, slurries, or viscous substances. These mixers can be equipped with an advanced liquid spraying system and customized according to specific user requirements. They can operate under vacuum, pressurized, heated, or cooled conditions, offering unparalleled flexibility. This exceptional versatility meets the diverse mixing and stirring needs of materials under a broad range of process conditions.
The Conical Screw Ribbon Mixers deliver powerful and efficient mixing capabilities. During operation, materials near the container wall are driven upwards, while those at the center move downwards, ensuring a gentle but thorough mixing of flowable materials. This innovative mixing action allows for a high degree of uniformity, ensuring large quantities of materials are mixed thoroughly within a short period. The superior design of the discharge mechanism ensures that the material in the hopper is almost entirely discharged, significantly minimizing material residue and waste.
Product Features
1. Cantilever Shaft Structure,with the bearings end not in contact with the material, enhancing durability and reducing contamination risks.
2. The minimal gap between the agitator blades and the container wall aims to prevent material adhesion .
3.
A standardized agitator drive box ensures stable equipment operation and reduces maintenance costs, providing long-term reliability.
4. Easy-Cleaning : Designed for swift and thorough cleaning between batches, maximizing productivity and hygiene;
5. Durable Construction : Built with robust materials, ensuring long-term reliability and performance;
6. Wide Application : Suitable for industries including pharmaceuticals, food processing, chemicals, and cosmetics.
Technical Parameters

Equipment model	Total Volume (m³)	Loading Coefficient	Motor Power (kW)	Overall Dimensions (mm)	Equipment Weight (kg)
RX-DZH-0.06	0.06	0.4-0.6	1.5	φ630x1451	120
RX-DZH-0.1	0.1	0.4-0.6	2.2	φ715x1569	220
RX-DZH-0.3	0.3	0.4-0.6	2.2	φ920x1929	320
RX-DZH-0.5	0.5	0.4-0.6	4	φ1140x2327	410
RX-DZH-1	1	0.4-0.6	7.5	φ1480x2869	900
RX-DZH-1.5	1.5	0.4-0.6	11	φ1633x3140	1200
RX-DZH-2	2	0.4-0.6	11	φ1816x3489	1300
RX-DZH-3	3	0.4-0.6	15	φ2040x3760	2400
RX-DZH-4	4	0.4-0.6	18.5	φ2250x4425	2500
RX-DZH-6	6	0.4-0.6	22	φ2548x4940	2850
RX-DZH-8	8	0.4-0.6	30	φ2780x5360	4250
RX-DZH-10	10	0.4-0.6	37	φ3018x5815	5200
RX-DZH-12	12	0.4-0.6	45	φ3204x6100	5800
RX-DZH-15	15	0.4-0.6	55	φ3442x6540	6300

Product Display Product Structure Application
The Double Cone Mixer is ideal for applications inpowder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food industries
