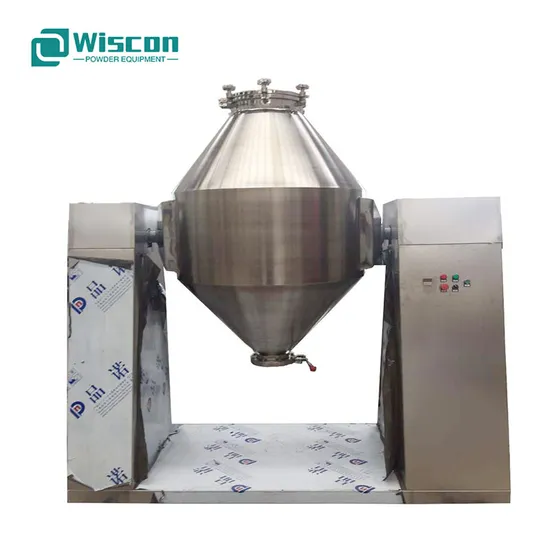

Masterbatch Detergent Granules Tumble Double Cone Mixer Blender Mixing Machine

Product Description

Product Description Product Description
The double cone blender is a versatile blender for mixing dry powders and any type of granule in a homogenous manner.
that is a conical shape that enables a very uniform mixing and a very easy discharge. it can handle large capacities and
are easy to clean, load, and unload.
Applicable Materials
Free-flowing dry powder, granules, or any heavy and abrasive material.
Typical Application
Metal powder, ceramic powder, lithium battery, plastics in powder, pharmaceutical, animal feed, Healthcare, flour, seeds, starch,
coffee beans and ground coffee, etc.
Working Principle
Double cone blender consists of a w-type mixing vessel, supporting frame, Transmission system, electric control system, etc.
Through the rotation of the vessel, the material is repeatedly polymerized and separated by its gravity and centrifugal force
to achieve uniform mixing. The mixed material is discharged from the discharge port through a butterfly valve
Product Parameters

Model	Total volume (L)	Max Loading (kg)	Motor power (kw)	Speed (r/min)	Overall dimension(mm)	Weight(kg)
SZH-0.1	100	40	0.75	3~12	1400X550X1500	180
SZH-0.2	200	80	1.1	3~12	1500X700X1650	250
SZH-0.3	300	120	1.5	3~12	1700X800X1850	350
SZH-0.5	500	200	2.2	3~12	2000X1100X1950	550
SZH-1	1000	400	4	3~12	2400X1200X2200	1000
SZH-1.5	1000	600	5.5	3~12	2810X1400X2400	1200
SZH-2	1000	800	7.5	3~12	3000X1550X2600	1600

Product Details
Why us Wuxi Wiscon mechanical and Electrical Equipment Co., Ltd. is an integrated company specializing in powder production for the food,
pharmaceutical, chemical, and biological industries since 2016.
Main products categories cover the following equipment:
a. Drying Equipment: rotary atomizer spray dryer, pressure nozzle spray dryer, tray drying oven.
b. Powder Mixer: Conical Screw mixer, Ribbon mixer, Ploughshare Mixer, V-shaped mixer, and Double cone mixer for bulk materials.
c. Vibration Screener: Rotary vibratory Screener, Tumbler Screening Machine, and Centrifugal shifter for fine powder separation.
d. Grinding Machine: Universal Mill, Air Classified Mill for food and Pharmaceutical.
e. Granulating Equipment: High Shear Mixer Granulator and Fluid Bed Granulator
f. Vacuum conveyor: Pneumatic vacuum Feeder for BIC, Bagging machine, powder mixer, sieve, etc.
FAQ Questionnaire for double cone mixer
In order to quote you the right double cone mixer price, Please specify as much information as possible
- What are the materials to be handled?
- What's the mixing capacity per batch?
- What is the particle size of the raw materials?
- What is the bulk density of raw materials?
- Does the product need to be heated or cooled while mixing?
- Does the mixer need to have a vacuum applied when the product is mixing?
