Hot Selling Grapple Log Trailer with Crane Timber Tree Logging Cranes

Product Description

Contact us and you will receive a free brochure.Packed with product information, inspiration, and more ways to Live the Wood Life with Jierui Machinery Equipment Co.,Ltd. Product Description

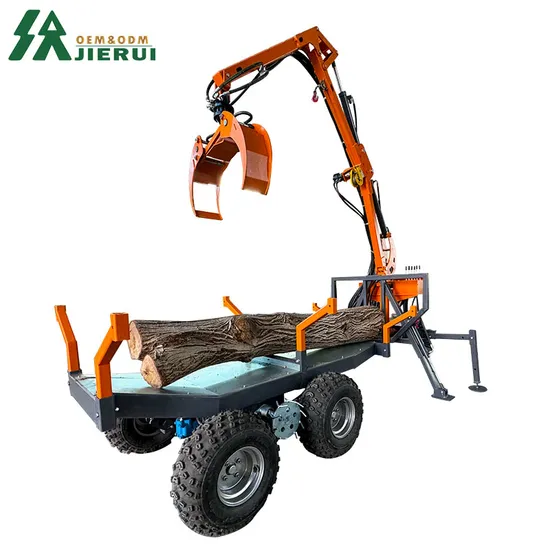

Timber Trailer with Crane
A crane with a log trailer that has strength and full technology.Can be installed on trucks, tractors, and flatbed trailers.Standard multi lever valve block components, simple rotary cylinder, and tilted boom can achieve maximum strength. The comfortable hinge between the first suspension rod and the outer suspension rod can achieve the optimal motion mode. The crane is equipped with top mounted cylinders for the first and outer arms, hidden hoses, exposed hose wear protection devices, and impact protection for the fully rotating rotor, thereby minimizing external damage to the hoses and couplings.Specifically designed for anygrab need related to timber loading, they have great lifting and loading capacity thanks to their special geometry.

Model	JRT03	JRT03A	JRT03B
Timber Crane
Max reach	3.4m
Lifting capacity(3.4m)	200kg
Turning radius of crane	360°
No. of swing cylinder	2pcs
Max. open & area of wood grapple	700mm/0.08 m2 (STANDARD)
Max. load of hydraulic rotator	1 ton(10KN)
Hydraulic rotator turning radius	18-22Mpa
Working pressure	18-22Mpa
Control valve	5/7 sets	7/9 sets	5/7 sets & 2/4 sets
Power Unit	6.5HP engine 6L hydraulic tank	9HP engine 6L hydraulic tank	9HP engine 6L hydraulic tank
Hydraulic flow	7.5L/min	14.4L/min	14.4L/min
Weight	190kg	190kg	190kg
Timber Trailer
Max. load	1500kg		2000kg
Total length	3230mm		3350mm
Width with wheels	1440mm		1344mm
Height	1600mm		1600mm
Height of front plate	1100x700mm		1100x700mm
No. of "S"	2sets		3sets
Length of loading area	2120mm(3520mm)		2200mm
Loading area volume	1.6-3m3		1.6 m3
Min. ground clearance	200mm		200mm
Standard wheel	22x11-10		25x10-12
Remote 4WD drive	--	YES	YES
Remote Telescopic trailer	--	--	YES
Remote Swing angle	--	--	±45°
Weight	270kg	390kg	565kg
40"HC	24pcs		15pcs

Product Details
LARGE
CONTROL CONSOLE
PRECISION
HYDRAULIC CYLINDER
HIGH STRENGTH
CRANE

ADJUSTABLE
LOG SUPPORT
STURDY TRAILER
TOWING DEVICE
Product Display
Packaging & Shipping
Customer Photos



FAQ
1. who are we?
We are based in Shandong, China, start from 2020,sell to South Asia(50.00%),Africa(50.00%). There are total about 11-50 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Firewood processor, Wood log splitter, Woodworking machinery,Sawing machine,Hardware cutter,Saw blade,Mechanical customization4. why should you buy from us not from other suppliers?A) As the leading manufacturer of forest machines, we have exported to European market for more than ten years, familiar with forest and farm market and can recommend to clients right products. B) We have various products and can offer all the machines an5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
