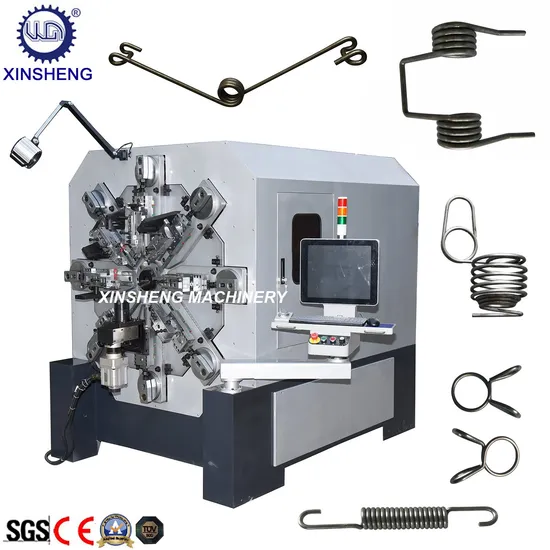

Automatic CNC Camless Compression Extension Torsion Spring Forming Making Machine Wire Forming Machine
| Negotiable | 1 set (MOQ) |
Basic Info.
Model NO.
GT-40-12R
Transport Package
Standard Export Wooden Box
Specification
1.2-4.0mm
Trademark
WG
Origin
China
Product Description
Product Description1.Adapt camless design, fast adjusting of machine, high precision and stable quality.
2. Adopt Japan Panasonic Servo motor and Germany Roster reducer.
3. Wire rotation design , stable feeding and more convenient adjustment of machine.
4. English and Chinese interface, easy operation , less experience required.
5. When upgrading the machine technology, it can solve technical difficulty which ordinary CNC wire bending machine or spring machine can not do.
Product Parameters
| Model | GT20-10 | GT25-10 | GT28-12R | GT35-12R |
| Wire dia(mm) | Hard: 0.2-2.0mm Soft: 0.4-2.8mm | Hard:0.2-2.5mm Soft: 0.4-3.5mm | Hard:0.4-2.8 Soft:0.5-4.0 | Hard:0.8-3.5 Soft:2.0-5.0 |
| Max. wire feeding value (mm) | 10000.00mm | 10000.00mm | 10000 | 10000 |
| Min. wire feeding value (mm) | 0.01mm | 0.01mm | 0.01 | 0.01 |
| Max. wire feeding speed (m/min) | 120m/ | 120m/ | 120m/ | 80/ |
| Max. wire feeding length | Unlimited | Unlimited | ||
| Axis number | 10 | 10 | 12 | 12 |
| Total output power of servo motors (kw) | 7.3KW | 10.4KW | 13.3KW | 17.6KW |
| Program storage(plus) | 3000 | 3000 | 3000 | 3000 |
| Compressor air pressure(kg/cm) | 5-6kg/cm² | 5-6kg/cm² | 5-6 | 5-6 |
| Probe number | 3 | 3 | 3 | 3 |
| Machine Dimensions(L*W*H)(CM) | 120*80*160 95*95*75 | 138*115*181 95*95*75 | 213*141*204 102*102*92 | 230*250*178 125*125*103 |
| The feeding tray | 100KG | 200KG | 200KG | 300KG |
| Net weight(kg) | 800kg | 980kg | 1600 | 2500 |
| Model | GT40-12R | GT48-12R | GT50-12R | GT55-12R |
| Wire dia(mm) | Hard:1.2-4.0 Soft: 2.0-6.0 | Hard:1.2-4.8 Soft: 3.0-8.0 | Hard:1.2-5.0 Soft: 3.0-9.0 | Hard: 2.0-5.5 Soft: 3.0-10.0 |
| Max. wire feeding value (mm) | 10000 | 10000 | 10000 | 10000 |
| Min. wire feeding value (mm) | 0.01 | 0.01 | 0.01 | 0.01 |
| Max. wire feeding speed (m/min) | 80 | 80 | 80 | 80 |
| Max. wire feeding length | Unlimited | Unlimited | Unlimited | Unlimited |
| Axis number | 12 | 12 | 12 | 12 |
| Total output power of servo motors (kw) | 21.8KW | 23KW | 26.7KW | 29.5KW |
| Program storage(plus) | 3000 | 3000 | 3000 | 3000 |
| Compressor air pressure (kg/cm) | 5-6 | 5-6 | 5-6 | 5-6 |
| Probe number | 3 | 3 | 3 | 3 |
| Packing Size L*W*H(cm) | 275*160*192 145*145*130 | 275*160*192 145*145*130 | 300*180*225 161*161*141 | 300*180*225 161*161*141 |
| The feeding tray | 400KG | 400KG | 500KG | 500KG |
| Net weight(kg) | 4100 | 5000 | 5500 | 6000 |
| Model | GT60-12R | GT80-12R | GT100-12R |
| Wire dia(mm) | Hard: 2.0-6.0 Soft: 3.0-10.0 | Hard: 3.0-8.0 Soft: 5.0-12.0 | Hard: 4.0-10.0 Soft: 6.0-16.0 |
| Copper bar(W*T*) | 40*4 mm | 50*5 mm | 60*6mm |
| Max. wire feeding value (mm) | 10000 | 10000 | 10000 |
| Min. wire feeding value(mm) | 0.01 | 0.01 | 0.01 |
| Max. wire feeding speed(m/min) | 80 | 70 | 60 |
| Max. wire feeding length | Unlimited | Unlimited | Unlimited |
| Axis number | 12 | 12 | 12 |
| Total output power of servo motors (kw) | 38.4KW | 55.0KW | 88.5KW |
| Program storage (plus) | 3000 | 3000 | 3000 |
| Compressor air pressure (kg/cm) | 5-6 | 5-6 | 5-6 |
| Probe number | 3 | 3 | 3 |
| The feeding tray | 500KG | 1000KG | 1000KG |
| Size(L*W*H)cm | 350*210*220 161*161*141 | 350*210*220 205*205*150 | 350*220*230 205*205*150 |
| Net weight(kg) | 7500 | 9000 | 11000 |
