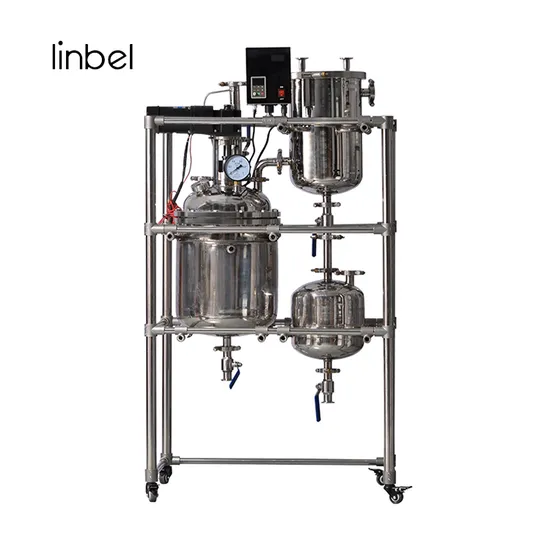

Acrylic Resin Activated Pharmaceutical Ingredient Stainless Steel SS304 Bioreactor Mixing Tank Lab Reactor
| US$2,550.00-3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SSR-20L
Type
Tank Reactor
Material
Stainless Steel
Capacity
<50L
Structure
Multiple Parallel
Pressure
Positive
Agitator Model
Paddle Agitator
Tower Reactor Type
Packed Tower Reactor
Heating
Oil Circulation Heating
Heat Transfer Structure
Jacketed
Automatic Grade
Automatic
Condition
New
Name
20L Stainless Steel Chemical Reactor
Voltage
220V/380V/60Hz
Vacuum Degree
0.098MPa
Condenser
Vertical
Rotating Speed
30-140rpm
Rotary Flask
20L
Collecting Flask
10L
Transport Package
Wooden Box
Specification
450*450*1150mm
Trademark
Linbel
Origin
Shanghai
Production Capacity
1000set/Month
Product Description
| Model | SSR-20L | SSR-50L | SSR-100L | SSR-200L | SSR-500L |
| Volume(L) | 20L | 50L | 100L | 200L | 500L |
| Material | 304/316 stainless steel | ||||
| Steel thickness(mm) | 2/3/4 | ||||
| Inner diameter | 300 | 400 | 500 | 600 | 800 |
| Jacket diameter | 400 | 500 | 600 | 700 | 900 |
| Jacket volume(L) | 10L | 20L | 35L | 58L | 120L |
| Motor power(kW) | 0.25/ 0.55 | 0.55/ 0.75 | 0.75 | 0.75/ 1.5 | 2.2 |
| Speed adjustment range(rpm) | 30~140 | ||||
| Design temperature | -120~180 | ||||
| Design pressure | Atmospheric pressure | ||||
| Net size(length * width * heightmm) | 450*450*1150 | 550*550*1200 | 650*650*1300 | 800*800*1970 | 1000*1000*2200 |
| Net weight(kg) | 90 | 120 | 130 | 230 | 430 |
| Packaging size(length * width * heightmm) | 500*650*1250 | 650*800*1300 | 700*850*1400 | 950*1050*2050 | 1100*1250*2350 |
| Packaging weight(kg) | 130 | 150 | 170 | 250 | 580 |
| Kettle cover | Vacuum gauge/ pressure gauge, thermometer/ probe Liquid inlet, solid inlet Vacuum port, spare port, mirror *2 (with lamp and scraper) The interface size is φ 50.5 quick loading chuck (customizable) | ||||
FAQ:
Q1. What is your products range?
• Industry water chiller, recirculating cooling chiller, rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have our own factory.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
