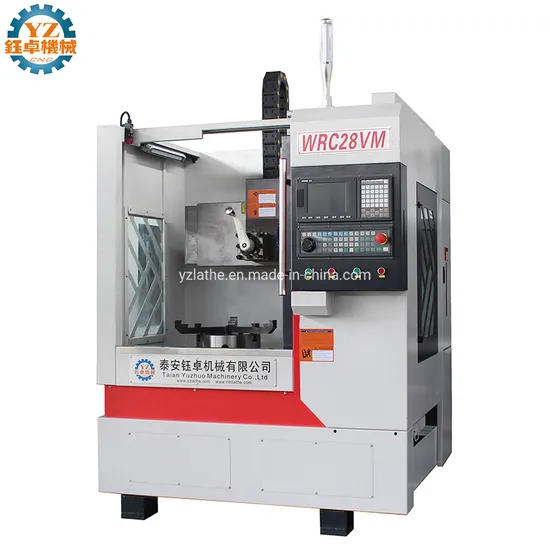

Easy Operation Exported to German Vertical Type Alloy Wheel Repair CNC Lathe
| US$13,000.00-16,000.00 | 1 Box (MOQ) |
Basic Info.
Model NO.
WRC28VM
Guide Rail
Vertical Linear Guide
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max.Repair Wheel
10-32inch
CNC Controller
Syntec
Machine Function
Ty30s Mint Alloy Wheel CNC Lathe with PC Touch
Motor Power
7.5kw
Chuck Size
400mm
Max.Swing Over Bed
820mm
Spindle Speed
50-1500rpm
Arbor Section
20X20mm
Cutting Speed
0.1-1000mm/Min
Tool Post Vertical Moving Distance
200mm
Transport Package
Wooden Case with Iron Foot
Specification
1460x1570x2030mm
Trademark
Yuzhuo
Origin
Shandong
HS Code
8458110090
Production Capacity
400/Year
Product Description
Easy Operation Exported to German Vertical Type Alloy Wheel Repair CNC LatheProduct Description
Vertical Wheel CNC Lathe Specification
| NO | Specification Item | WRC28VM |
| 1 | Max.process diameter of wheel | 28 inch |
| 3 | Chuck diameter | 320mm |
| 4 | Spindle speed | 50-1500rpm |
| 5 | Cutting speed | 0.1-1000mm/min |
| 6 | Max. travel | X/Z: 410/400mm |
| 7 | Rapid speed | X/Z: 8000mm/min |
| 8 | Tool post | Manual 4 position tool post |
| 9 | Section of tool post | 25x25mm |
| 10 | Feed motor power | X/Z: 1.6 kW /10NM |
| 11 | Linear guide nominal width | X/Z :30/30MM |
| 12 | Accuracy | 0.015mm |
| 13 | Repeatability | 0.012mm |
| 14 | Main motor power | 7.5KW |
| 15 | Dimension | 1460×1570×2030mm |
| 16 | Weight | 1300KG |
Standard Components
1.Diamond Cutter
2.3-Jaws Manual Chuck(With Special Soft Jaws)
3.Diamond Digital Probe Tip
4.Taiwan SYNTEC Controller
5.Manual Quick Change Toolpost,Four-station;
6.Work Lighting System;
7.Automatic Lubrication System;
8.Cooling System;
9.Full Cover (Security Guard Door);
10.Accesssories Tools and Tool Box
11.Wheel Curve Optimize Software
Services:
1-After-sales services: Warranty is one year; we would offer the parts (quality problem) free of charge during this period, freight collect.
2-Alloy Wheel Refurbishemnt Advice from REAL WORLD experts in the Diamond Cutting and Alloy Wheel Refurbishment industry
3-Mechanical Support
4-Software Support
5-Comprehensive Training
6-Probe alloy wheel profile
Just PROBE & Diamond CUT !
Once the machine has automatically probed the wheel profile there is no need for you to waste time programming our Alloy Wheel lathe we have taken care of that for you. Just cut the wheel and store the profile on the system. Build up a library of Alloy wheel profiles.We saved you time so you can cut more wheels!
The machine work steps
1-Probe alloy wheel profile,transformation G code
2-Diamond cut the wheel.
Vertical Wheel CNC Lathe Machine Photos
