Manual Type Press Plate Polishing/Grinding Machine

Manual Type Press Plate Polishing/Grinding Machine

US$10,000.00-15,000.00 1 Set (MOQ)

Basic Info.

Model NO.
1600/1300
Type
Surface Grinding Machine
Processing Object
Stainless Steel Sheet
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Polishing Heads
1 Head
Transport Package
Sea Worthy Packing
Specification
Up to Requirement
Trademark
Zhongshuo
Origin
Wuxi
HS Code
8460902000
Production Capacity
20 Set/Year

Product Description

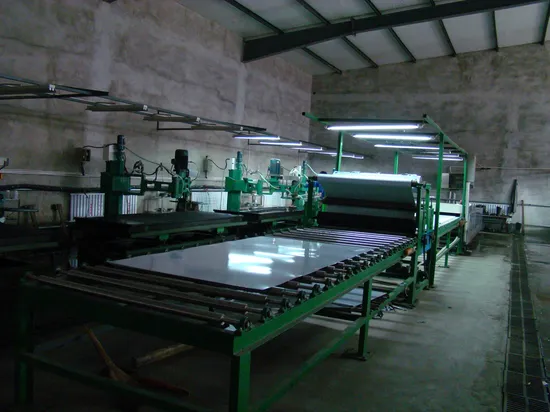

One Head Mirror 8K Polishing/Grinding Machine

This Polishing/Grinding Machine is mainly used for the repairing Polishing/Grinding of 8K Mirror Sheets. After Repairing Grinding with this Machine, The Quality can reach Super 8k Effect.

This Machine can also be used for the polishing/Grinding of Press plates.


Main Parameter:
Max Height of the Arm: 250MM
Min Diameter of the Working Area of the Arm: 500MM
Max Diameter of the Working Area of the Arm: 2,000 MM
Power of the Main Motor: 4KW
Worktable Area: 1500MM * 3000MM
Material of Worktable: Rubber-covered Steel.

Consumables
The Consumables are abrasives:

One Set--- One set can polish about 20 --25 sheets (4 * 8 Sheets)
No. Products Type Price (USD) Remarks
1 Resin Polishing wheel 240# 92
2 Resin Polishing wheel 400# 100
3 Resin Polishing wheel 800# 105
4 Resin Polishing wheel 1500# 120
5 Special Polishing Wheel 36
6 Sponge Gasket 13
7 Polishing Liquid 5

Application:

The reflectivity of Super Mirror creates light and space and is easily fabricate, it has reflectivity of Glass Mirror, but unlike Glass Mirror, It will not cause the so-called Light Pollution, That is why it is widely used in Modern Society.

Typical Application of Mirror Polished sheet is: elevator, escalator, interior cladding, building facades, Medical & Chemical purpose etc.
Mirror Polished Sheets or plated can be further treated with Etching, PVD or other processes.
