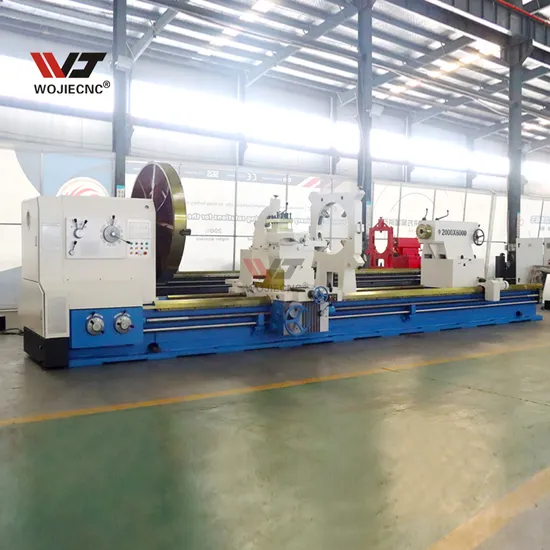

Industrial-Grade Cw61160 Horizontal Heavy Duty Lathe Machine Available

Product Description

Product Description
This series lathe machine is suitable for internal and external turning, tappering, and other rotating faces, metric, module and inch threads, as well as drilling and pull oil slot. This machine could machining steel, casting, nonferrous metals and etc. The dimensional accuracy of machined workpiece could reach to IT6-IT7, and with good surface roughness. The Machine with handle breaker, easy to operate, safe and reliable.
Product Parameters

MODELS	CW61160/CW62160
CAPACITY
Max. swing over bed	Ф1600mm
Max. swing over carriage	Ф1260mm
Max. swing over gap	Ф2110mm
Effective length of gap	590mm
Width of bed	970mm
Max. length of workpiece	1.5/2/3/4/5/6/8/10/12m
Max. turning length	1.3/1.8/2.8/3.8/4.8/5.8/7.8/9.8/11.8m
Max. weight of workpiece (between centers)	6000kg
SPINDLE
Spindle nose	A2-15
Spindle bore	Ф130mm
Taper bore of spindle	Metric Ф140 1:20
Steps of spindle speed	24(Normal), 12(Reverse)
Range of spindle speed	2.5~250rpm
Pitch of longitudinal ball screw/diameter	12mm/Ф70mm
Number of longitudinal and cross feeds	97
FEED RANGE OF TOOL POST FOR PER REVOLUTION OF SPINDLE
Longitudinal	0.1~12mm/r
Cross	0.05~6mm/r
Middle tool post	0.025~3mm/r
THREADING
Metric pitch threads	1~120mm/ 45
Whit-worth threads	30~¼TPI/ 42
Module threads	1/2~60D.P/ 48
D.P. Threads	½~60M.P/ 46
RAPID TRAVEL
Longitudinal	3740mm/min
Cross	1870mm/min
TAILSTOCK SLEEVE
Taper bore	Metric 80
External diameter	Ф160mm
Max. travel	300mm
OTHERS
Vertical distance from spindle center to installing basis	51mm
Max. travel of middle tool post	400mm
Swing angle of tool post	±90°
Max travel of cross slide	900mm
Size of tool shank	50×50mm
Main motor power	22kw
Rapid feed motor power	1.5kw
Coolant pump power	0.25kw
3 meter machine overall dimensions (L x W x H)	6100 x 2130 x 2300mm
Net weight	15100kg

Detailed Photos



Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months Certifications
FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.
