Sell Chinese Made 12.6mm Pitch Fishing Net Machine Model Zrd12.6-530f

Product Description

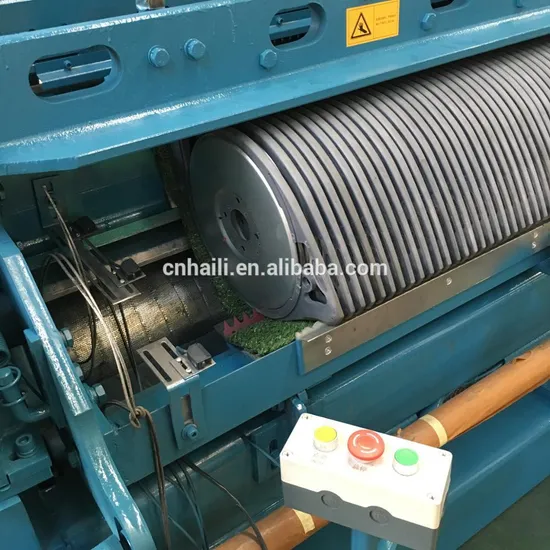

Fishing net machine F series fishing net machine
F series fishing net machine : High-speed operation, high efficiency. Big spool dia, large amount of weft twine,this kind of net
machine model are suitable for making the fishing net,agriculture net etc

Model	ZRD12.6-530F
Knot type	S/D/U
Pitch(mm)	12.6
Width(Nos of shuttle)	530
Spool dia(mm)	250/270
Nylon multifilament(denier/ply)	210D/6-48plys
PE Twine(denier/ply)	380D/6-21plys
Mesh size(mm)	19-250
Rotative velocity(r/min)	14-16
Motor power(kw)	5.5
Length*Width*Height(mm)	9600*3800*2500
Weight(kg)	22000-24000

Company Profile
Yangzhou Haili Precision Machinery Co., Ltd(Yangzhou Haixin Textile Machinery Co., Ltd).Now we are the largest
professional manufacturer of fishing net machine,lengthway &depthway fishing net stretching machine,auxidiary
equipments &spare parts in China.It has been engaged in this field for more We have more than 90 series fishing net
machines such as ZRD/S-Y, ZRD/S-N,ZRD/S-X,ZRD/S/U-F, ZRD/S/U-A, ZRS-H and so on.Our products have been
exported to Germany, Japan, Spain, Thailand, Vietnam, South,Korea, Africa and other countries . We warmly welcome
customers and friends by local and abroard to visit and guide, look forward to your cooperation .
1.Machanical brake
2.We put our own new design for the machanical brake to make the quality nets especially for the tight knots
3.Japan Toyota brand Hydraulize Brake(4 cylinders)
4.We put Japan Imported NSK/NTN into the main shaft,which will be used for long time
5.Taiwan Teco Brand Main Motor
