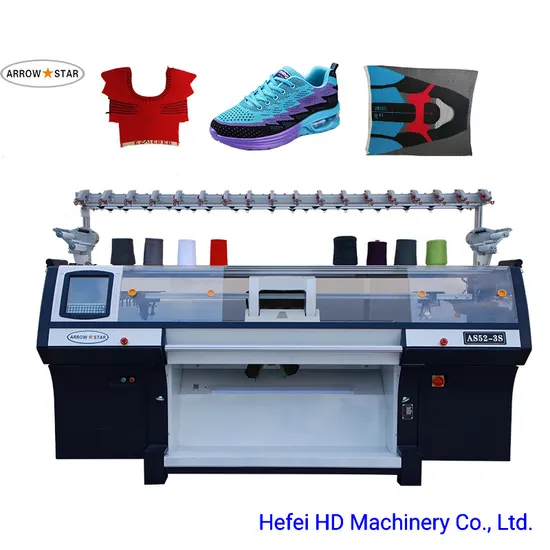

14G 36inch 52inch Computerized Flat Knitting Machine for Making Shoes Upper
| US$7,500.00-10,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
AS52-3S
Knitting Machine Cut
E12,E14
Knitting Product Type
Shoes Vamp
Knitting Style
Flat
Knitting Method
Three System
Needle Style
Latch Needle
Needle Bar Style
Flatbed Knitting Machine
Computerized
Computerized
Certification
CE, ISO9001: 2000
Condition
New
After-sales Service
on Line /Door-to-Door Service
Gauge
12g 14G
Speed
1.6m/S
System
Double and Three System
Density
Tight Density
Sinker
Cross Sinker
Racking
Double Racking
Motor
Stepping Motor
Language
English , Spanish ,Portugal , Arab
Control System
Reyan or Hengqiang
Transport Package
Wodden Case Packing
Specification
2450*750*1750 CM about 590KG
Trademark
Arrow Star
Origin
China
HS Code
8447202000
Production Capacity
2000 Set/Sets Per Month
Product Description
Product DescriptionThree system computerized jacquard shoes upper knitting machine can make high definition muslim cap, beanie, hat, scarf,
sweater, blanket, baby clothes, cardigan, Jerseys, school uniform, gloves, rib, cuff, pocket, trousers, and shawl. Besides three system computerized jacquard sweater knitting machine, we can also supply three system sweater flat knitting
machine, single system sweater flat knitting machine, single system with double carriage collar & cuff knitting machine
80inch 1+1, double system with double carriage sweater knitting machine 80inch 2+2 and three system shoes upper
knitting machine etc.
Specification:
| Gauge | 12GG 14GG |
| Knitting width | 52inch, (56inch, 60inch, 66inch, 68inch, 72inch, 80inch, 100inch, 120inch optioned) |
| Knitting function | Knitting single or double jersey, full needles, irregular jacquard, intarsia, cables, pointel fabric. |
| Knitting system | Single carriage with three system |
| Knitting speed | Max 1.6m/s |
| Stitch density | Stepper motor control, 24-segment density choices subdivision technology, adjustable range: 0-650degrees, more accurately control the length of the garment, using a dosed-loop system monitoring motor current location. |
| Dynamic stitch | Various density changes and controls can be carried out in the same line. |
| Double Racking | Motor-driven. Max 1 inch racking each side (2 inches total). 1/2 and1/4 pitch also available from any position. |
| Takedown device | Two monitor control roller, UP-POSITION roller |
| Transfer | Simultaneous transfer, front or back, independent of carriage direction. Split stitch possible without exchanging yarn carriers. |
| Sinker system | The motor control sinker system, the new design of the sinker can play a better weaving function. |
| Needle selection | Full jacquard selection via special solenoid actuators. 8 sections selection needles. |
| Yam feed roller | Prevention coiling device yam feed roller, Electroplating ceramic roller, effective anti static. |
| Yam ariers | The new design of the color change device(lever principle), to eliminate the yarn feeder does not take. 2 sets of yarns are equipped with rollers to reduce yam breakage. |
| Top tension | 24units. One-touch easy threading. Large knots cause machine stop. Small knots cause 0-9 courses at specified knot detection speed, then automatically resume at set speed. |
| Stop motion | Yarn break, large knot, fabric pileup, shock detection, piece count, Over-torque, program error, etc. |
| Drive system | Belt drive. AC servo motor. No lubrication necessary. |
| Safety devices | Full safety cover for noise-suppression and dust-proofing with stop motion sensor and interlock mechanism. Emergency stop switch. Emergency power off device. Ultra-low speed "crawl" setting. |
| Needle detector | Knitting area alarm, non alarm outside weave area. Automatic reset |
