1000V Ut Phoenix Replacement 2.5mm Screw DIN Rail Terminal Block Wire Connector

Product Description

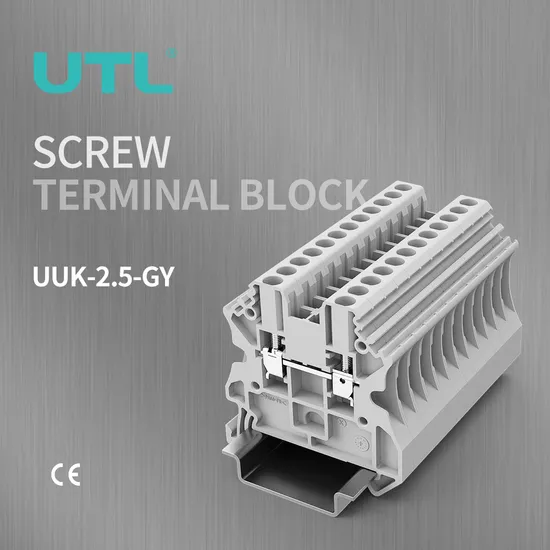

UUK Series Screw Terminal Blocks: A Superior Replacement for Phoenix Contact UT Series Product Overview
Introducing the UUK series screw terminal blocks, designed to offer enhanced performance and reliability. Ideal for replacing the popular Phoenix Contact UT series, our new terminals feature:
- **Advanced Design**: Improved mechanical strength and corrosion resistance.
- **Easy Installation**: Simplified screw mechanism for quick and secure connections.
- **Versatile Use**: Compatible with a wide range of wire sizes.
- **Compact Size**: Saves space in tight installations.
- **Safety Certified**: Meets international safety standards for reliable operation.
**Why Choose UUK?**
- **User-Friendly**: Easier to use and install.
- **Durable**: Proven to withstand extreme conditions.
- **Cost-Effective**: High quality at a competitive price. FEATURES AT A GLANCE

Product No.	Width (mm)	Height (mm)	Depth (mm)	Depth rail mounting NS35/(7.5/15)	Rated surge Voltage(V)	IEC Voltage (V)	IEC Current (A)	Solid Stranded Cable mm²	AWG
UUT2.5	5.2	47.7	46.9	47.5/55	8000	1000	24	0.2-4	26-12
UUT2.5PE	5.2	47.7	46.9	47.5/55	8000			0.2-4	24-12
UUT-2.5/1-2	5.2	57.8	46.9	47.5/55	6000	500	24	0.2-4	24-12
UUT-2.5/2-2	5.2	65.4	46.9	47.5/55	6000	500	24	0.2-4	24-12
UUT-2.5K	5.2	57.8	46.9	49.1/55	6000	400	20	0.2-4	24-12
UUT-2.5K-P/P	5.2	57.8	46.9	49.1/55	6000	400	20	0.2-4	24-12
UUT-4	6.2	47.7	46.9	47.5/55	8000	1000	32	0.2-6	24-10
UUT-4PE	6.2	47.7	46.9	47.5/55	8000			0.2-6	24-10
UUT-4/1-2	6.2	57.8	46.9	47.5/55	8000	1000	32	0.2-6	24-10
UUT-4/2-2	6.2	65.4	46.9	47.5/55	6000	500	32	0.2-6	24-10
UUT-4/2	6.2	69.9	46.9	65/72.5	8000	1000	36	0.2-6	24-10
UUT-4/2L	6.2	69.9	46.9	65/72.5	8000	1000	26	0.2-6	24-10
UUT-4RD	6.2	57.8		75.6/83.1	6000	500	6.3	0.2-6	24-10
UUT-4RD/LED24	6.2	57.8		75.6/83.1	6000	24	6.3	0.2-6	24-10
UUT/LED60	6.2	57.8		75.6/83.1	6000	60	6.3	0.2-6	24-10
UUT-4RD/LA250	6.2	57.8	46.9	75.6/83.1	4000	250	6.3	0.2-6	24-10
UUT-4K	6.2	57.8		49.1/56.6	6000	500	20	0.2-6	24-10
UUT-6	6.2	47.7		47.5/55	8000	1000	41	0.2-6	24-8
UUT-6PE	8.2	47.7	46.9	47.5/55	8000			0.2-10	24.8
UUT-6S-HV	8.2	72.6		54.3/61.6	8000	1000	41	0.2-10	24.8
UUT-6S-HV-P/P	8.2	72.6		54.3/61.6	8000	1000	41	0.2-10	24.8
UUT-10	10.2	47.7	46.9	47.5/55	8000	1000	57	0.5-16	26-12
UUT-10PE	10.2	47.7	46.9	47.5/55	8000	1000	57	0.5-16	20-6
UUT-16	12.2	55.5	46.9	47.5/55	8000	1000	57	1.5-25	14-4
UUT-16PE	12.2	55.5	54.4	55/62.5	8000			1.5-25	14-4
UUT-35	16	61.2	65.1	65.7/73.2	8000	1000	125	1.5-50	14-2
UUT-35PE	16	61.2	65.1	65.7/73.2	8000		350	1.5-50	14-2
