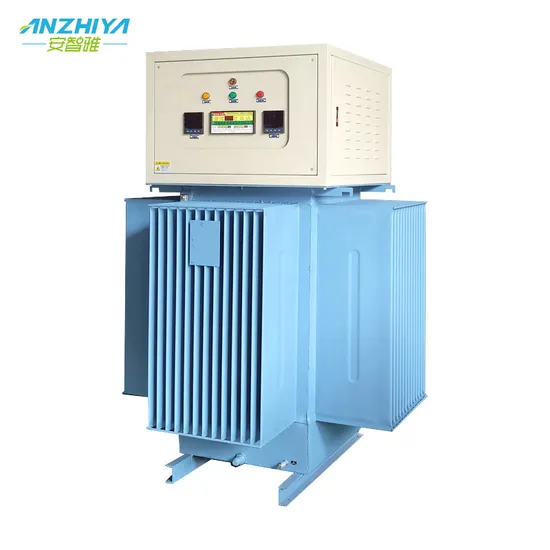

Anzhiya 200kVA 3 Phase Heat Dissipation Oil-Immersed Induction Voltage Stabilizer Electromagnetic Induction

Product Description

We specialize in customizing 0il-Immersed Induction Voltage stabilizer to meet your specifice requirements.
With customized any kind Voltage stabilizer, our offerings range up to 5000KVA.Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour.Thank you for considering our services.Hot selling modelsModel:AZY-3200
1. Input rated voltage: Three-phase 380VAC
2. Input frequency: 50 Hz /60 Hz
3. Output rated voltage: Three-phase 380VAC
4. Output load current: 304A
5. Output capacity: 200KVA
6. Instruct voltage: Input voltage and output voltage digital display
7. Cooling method: Oil-immersed self-cooling
8. Protection level: IP67
9. Voltage adjustment method: Three-phase regulation
10. Weight (approx.): 750 KG
11. Overall dimensions: 910*910*1547(MM) Model:AZY-3800
1. Input rated voltage: Three-phase 380VAC
2. Input frequency: 50 Hz /60 Hz
3. Output rated voltage: Three-phase 380VAC
4. Output load current: 1216A
5. Output capacity: 800KVA
6. Instruct voltage:Input voltage and output voltage digital display
7. Cooling method: Oil-immersed self-cooling
8. Protection level: IP67
9. Voltage adjustment method: Three-phase regulation
10. Weight (approx.): 1800 KG
11. Overall dimensions: 1070*1070*1959(MM)
Model:AZY-33500
1. Input rated voltage: Three-phase 380VAC
2. Input frequency: 50 Hz /60 Hz
3. Output rated voltage: Three-phase 380VAC
4. Output load current: 5320A
5. Output capacity: 3500KVA
6. Instruct voltage: Input voltage and output voltage digital display
7. Cooling method: Oil-immersed self-cooling
8. Protection level: IP67
9. Voltage adjustment method: Three-phase regulation
10. Weight (approx.): 7000 KG
11. Overall dimensions: 1550*1550*2405(MM) Model:AZY-35000
1. Input rated voltage: Three-phase 380VAC
2. Input frequency: 50 Hz /60 Hz
3. Output rated voltage: Three-phase 380VAC
4. Output load current: 7600A
5. Output capacity: 5000KVA
6. Instruct voltage: Input voltage and output voltage digital display
7. Cooling method: Oil-immersed self-cooling
8. Protection level: IP67
9. Voltage adjustment method: Three-phase regulation
10. Weight (approx.): 8500 KG
11. Overall dimensions: 1660*1660*2358(MM)Product DescriptionMain technical indicators

Brand		Anzhiya
Model		AZY-3200
Input	Rated voltage	Three-phase 380VAC
	Voltage regulation range	± 15%
	Frequency	50 Hz /60 Hz
Output	Rated voltage	Three-phase 380VAC
	Voltage stabilization accuracy	±1-5% Adjustable
	Response time	≤1-10s Adjustable
	Load current	304A
	Capacity	200KVA
	Waveform distortion	No additional waveform distortion (same as input waveform)
	Efficiency	≥97% or above
Instruct	Voltage	Input voltage and output voltage digital display
	Current	Output current digital display
	Indicator Lights	Have
	Abnormal	Over voltage, under voltage, phase loss, sound and light alarm indication
Control method		DSP Computing and metering chip intelligent control technology
Way of working		With automatic voltage stabilization and long-term operation function
Cooling method		Oil-immersed self-cooling
Ambient temperature		-25~+40ºC
Operating temperature		-25~+55ºC
Insulation level		A
Protection level		IP67
Voltage adjustment method		Three-phase regulation
Weight (approx.)		750 kg
Overall dimensions		910*910*1547(MM)

Process and special requirements
1) Exquisite appearance, easy to move with forklift and hand trailer, simple
installation and wiring;
2) Fuel tank material: Baosteel (or Wuhan Iron and Steel) cold-rolled steel plate corrugated fuel tank;
3) Surface treatment: G139 → phosphating + PZ 660 primer + powder coating ( RAL 7032 );
4) Packaging: strong and beautifulProduct working environment requirements:
Use site: Indoor (outdoor can be customized), no vibration, bumps, no gas, steam, chemical deposition that seriously affects the insulation of the stabilizer , Dust, dirt and other explosive and corrosive media.
Detailed PhotosApplicationsFactory production photosModel List

Voltage stabilizer
Model	Capacity	Load current	Use Voltage	Size(MM)	Weight(KG)
AZY--3100	100KVA	152A	X2.X3.X4	650*650*1000	450
AZY-3150	150KVA	225A	X2.X3.X4	750*750*1350	550
AZY-3200	200KVA	304A	X2.X3.X4	910*910*1558	750
AZY-3250	250KVA	380A	X2.X3.X4	910*910*1558	850
AZY-3300	300KVA	456A	X2.X3.X4	1000*1000*1636	1100
AZY-3350	350KVA	532A	X2.X3.X4	1000*1000*1636	1150
AZY-3400	400KVA	608A	X2.X3.X4	1090*1090*1636	1200
AZY-3500	500KVA	760A	X2.X3.X4	1090*1090*1700	1250
AZY-3600	600KVA	912A	X2.X3.X4	1200*1200*1700	1400
AZY-3800	800KVA	1216A	X2.X3.X4	1170*1170*1958	1800
AZY-31000	1000KVA	1520A	X2.X3.X4	1170*1170*1958	1900
AZY-31250	1250KVA	1900A	X2.X3.X4	1170*1170*1958	2000
AZY-31600	1600KVA	2432A	X2.X3.X4	1300*1300*1958	2200
AZY-32000	2000KVA	3040A	X2.X3.X4	1550*1550*1980	4000
AZY-32500	2500KVA	3800A	X2.X3.X4	1600*1600*2300	5500
AZY-33000	3000KVA	4560A	X2.X3.X4	1700*1700*2400	6500
AZY-34000	4000KVA	6080A	X2.X3.X4	1660*1660*2358	7500
AZY-35000	5000KVA	7600A	X2.X3.X4	1660*1660*2358	8500
Voltage Instructions	X2:Input 3ψ4 W220V X3:Input 3ψ4 W380V X4:Input 3ψ4 W440V E: Special specification or optional If not marked, default is 380V
