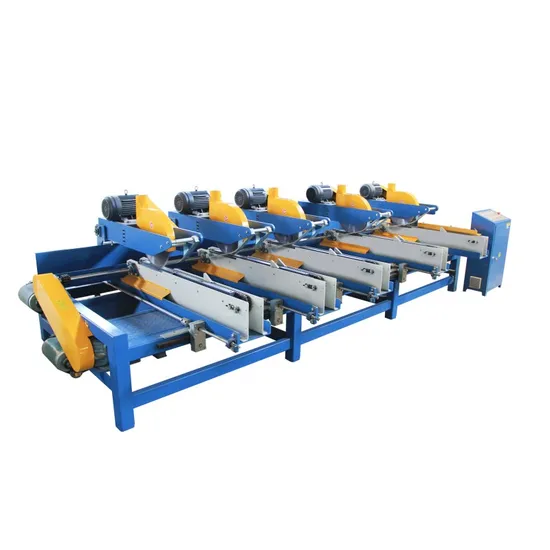

Multifunctional Saw Cutting Machine Pallet Wood Cross Cutting Multi Saw Machine

Product Description

Multifunctional Saw Cutting Machine Pallet Wood Cross Cutting Multi Saw Machine Product Description
Manual feeding wood, each head distance is adjustable manually with hand crank, each head can lift alone (when you no need to use it can lift it), high speed multi head cross cut saw machine.
Features 5 diameter circular saws, set at either equal or various distances from each other, depending on the application at hand. Each saw head can easily be positioned independently using a lockable saw head positioner. As boards are fed in laterally, these saws cut them individually into shorter pieces all at once.
Working video link: https://youtu.be/KFh5aes4Cjw Features 5 circular saws, set at either equal or various distances from each other, depending on the application at hand. Each saw head can easily be positioned independently using a lockable saw head positioner. As boards are fed in laterally, these saws cut them individually into shorter pieces all at once.
Functions, 2-8 sawing heads, 1st head is fixed, other heads are movable. Frequency control working speed, adjust in the control panel One operator required to operate the machine Heavy-duty steel construction 450*30mm diameter, 120 teeth circular saw blades Each saw is powered by a 5.5kw electric motor 24pc Chain conveyor dogs draw material evenly into saw to be cut Material can be up to 120mm thick, as short as 500mm long, and up to max. 6000mm length 430mm wide belt conveyor collects and discharges waste and end block material 430mm wide belt conveyor discharges product to either the left or right of machine can decide from the control panel Completely tested before delivery, can share testing video with you.

Model	SF8005
Sawing head quantity	5pc
Feeding length	500-5000mm First saw blade used for head trimming Its movable and max. head trimming length 100mm Distance between first saw blade and last saw blade is max. 5000mm
Min. Distance between saw blade	450mm
Cutting thickness	Max. 120mm (for 1 piece wood) Max. 60mm (for multi pieces wood)
Feeding block height	60mm
Cutting width	0-300mm
Feeding speed	Max. 6m/min Frequency control
Out-feeding speed	Max. 60m/min Frequency control
Cutting accuracy	±1mm
Saw kerf	4mm
Saw blade diameter	450mm*30mm*120T
Sawing head quantity	5pc
Sawing motor	5pc*5.5kw=27.5kw
Chain feeding motor	1pc*1.5kw=1.5kw
Conveyor motor	1pc*1.5kw=1.5kw
Total power	30.5kw
Voltage	380v 50Hz 3 phase
Dust collection port	5pc*100mm
Machine space	6770*6880*1970mm
Packing size	6450*2350*1730mm 4900*1200*1880mm 4900*2250*1230mm
Weight	8800kg

Detailed Photos

Related Products

SF7013	Double Heads Notcher
SF7030	Wood Pallet Chamfer Machine
SF7041	Pallet Round Corner Cutter Machine
SF6060	Wood Cross Cut Off Saw
SF6021	Wood Double Heads Trim Saw Machine
SF8005	Multi Heads Trim Saw
